Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Purpose Modulator/Demodulator
Frequency 300MHz
RF Type FM

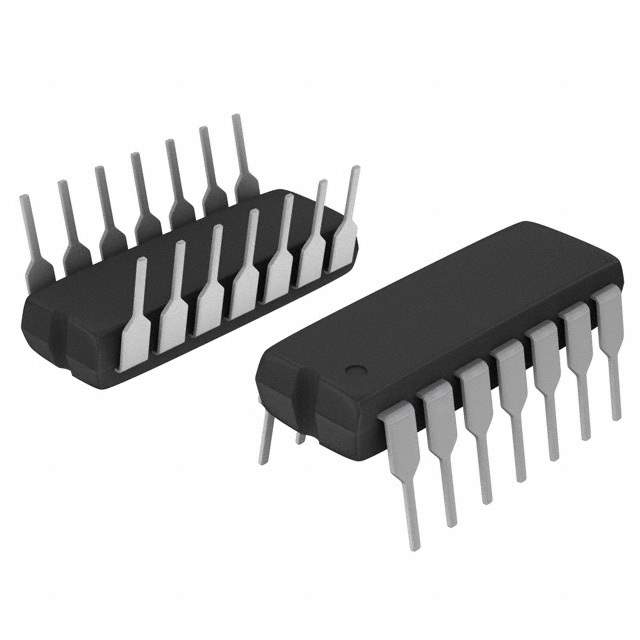

Case / Package 14-PDIP
Win Source Part Number 144053-MC1496PG
Ultra Librarian 3D Model Ultra Librarian MC1496PG CAD Model

Description

ON Semiconductor MC1496PG Balanced Modulator/Demodulator IC

The MC1496PG from ON Semiconductor is a versatile integrated circuit designed for balanced modulation and demodulation applications. This monolithic transistor array is well-suited for an array of communication systems, offering reliable performance in both analog and digital modulation schemes. The device is capable of functioning with excellent carrier suppression, making it an ideal choice for sophisticated communication systems where signal integrity is paramount.

Built using a time-tested design, the MC1496PG has been a staple in the industry, known for its durability and consistency. The IC operates over a wide frequency range, which makes it suitable for applications such as amplitude modulation (AM), frequency modulation (FM), phase modulation (PM), and various forms of pulse modulation. Its versatility is further highlighted by its use in product detectors, synchronous detectors, and DC balanced modulators/demodulators.

The MC1496PG features a double-balanced mixer configuration that ensures a high degree of isolation between the input and output ports. This characteristic is crucial in preventing feedback-related issues and maintaining the integrity of the signal processing. The device also boasts a high carrier rejection ratio, which minimizes the potential for carrier leakage and enhances the overall performance of the communication system.

Designed with the user in mind, the MC1496PG comes in a 14-pin DIP (Dual In-line Package) making it easy to integrate into a wide range of electronic circuits. It requires a minimal number of external components, which simplifies the design and reduces the overall cost of the system. The IC is characterized by its low power consumption, which is an essential feature for battery-powered devices or systems where energy efficiency is a concern.

Overall, the ON Semiconductor MC1496PG Balanced Modulator/Demodulator IC is a reliable and cost-effective solution for designers looking to implement modulation or demodulation functions in their communication systems. Its long-standing presence in the market is a testament to its performance, making it a go-to component for engineers and hobbyists alike.
