Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 740 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 150 µA @ 60 V
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package SMC
Base Product Number MBRS360
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 633830-MBRS360T3
Ultra Librarian 3D Model Ultra Librarian MBRS360T3 CAD Model

Description

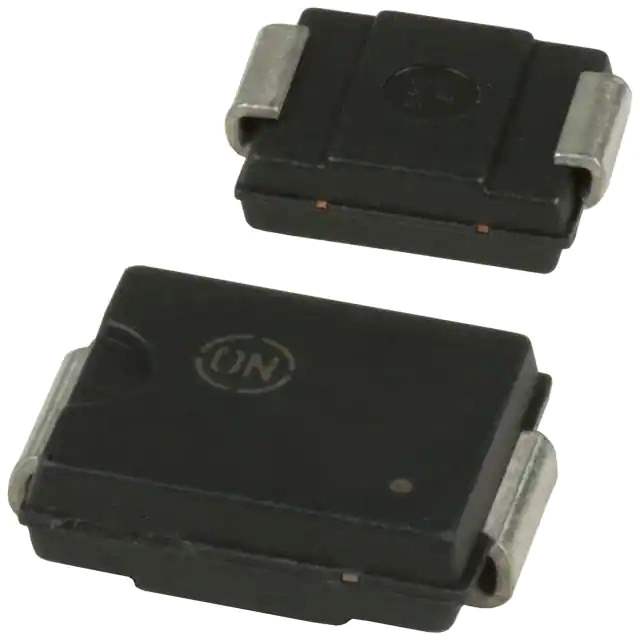

ON Semiconductor MBRS360T3 Schottky Power Rectifier

The MBRS360T3 is a robust Schottky power rectifier from the reputable manufacturer ON Semiconductor. This high-performance rectifying solution is designed to cater to applications requiring low voltage, high frequency rectification, freewheeling, and polarity protection. It is a preferred choice for compact and efficient power supply designs.

Key Features

  • Low Forward Voltage Drop: The MBRS360T3 offers a low forward voltage drop, which enhances system efficiency by minimizing power loss during the conduction phase.
  • High Surge Capacity: With its capability to handle high surge currents, this device is well-suited for applications that may experience occasional overcurrent conditions.
  • High Current Capability: The device can conduct up to 3A of continuous current, making it suitable for a wide range of power applications.
  • High Frequency Operation: Its fast switching characteristics make it ideal for use in high frequency circuits, contributing to reduced switching losses and improved overall performance.
  • Temperature Resilience: The MBRS360T3 is designed to operate reliably over a wide temperature range, ensuring consistent performance even under varying environmental conditions.

Package and Mounting

The device comes in a surface-mount SMB package, which is not only space-saving but also facilitates easier mounting and soldering onto printed circuit boards (PCBs). The SMB package is known for its durability and mechanical robustness, ensuring the component remains secure even in demanding applications.

Applications

The MBRS360T3 is versatile and can be utilized in a variety of electronic devices and systems. It is particularly well-suited for:

  • Switching power supplies
  • Converters
  • Free-wheeling diodes in power inverters
  • DC/DC converters
  • Automotive applications
  • Polarity protection devices

ON Semiconductor's dedication to quality and performance is evident in the MBRS360T3 Schottky power rectifier. Its combination of efficiency, reliability, and high current handling capability makes it an excellent choice for designers seeking to enhance their power management systems.
