ON Semiconductor MBRS320T3G Schottky Power Rectifier

The ON Semiconductor MBRS320T3G is a robust Schottky power rectifier designed to offer efficient and reliable performance in a variety of applications. This surface-mount component is part of the Schottky Barrier Rectifier series, renowned for their low forward voltage drop and high surge capability, making them ideal for high-efficiency power management tasks.

The MBRS320T3G features a maximum average forward rectified current of 3A, with a peak repetitive reverse voltage of 20V. Its low forward voltage drop, which is typically around 0.75V at 3A, ensures reduced power loss and improved efficiency, which is crucial for energy-sensitive designs. This characteristic, combined with its ability to handle high surge currents, makes the MBRS320T3G an excellent choice for switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Constructed with a Guardring for overvoltage protection, this Schottky rectifier is well-suited for voltage clamping applications and situations where reliability is a significant concern. The MBRS320T3G also features a highly rugged thermal performance due to its epoxy molding, which provides an environmentally friendly solution with improved mechanical strength.

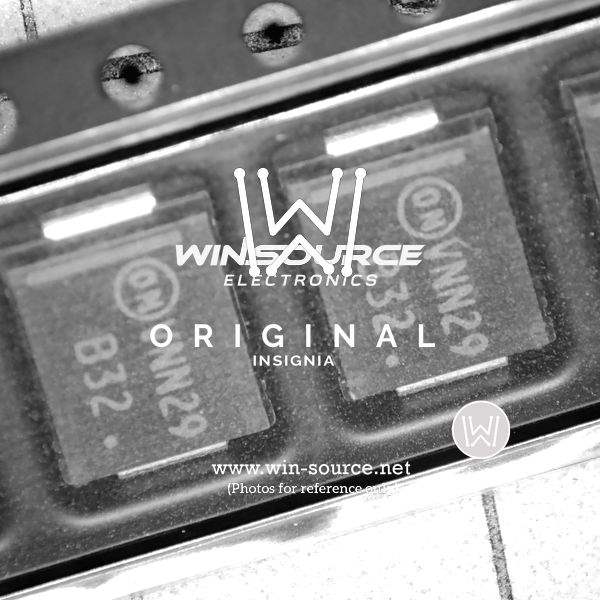

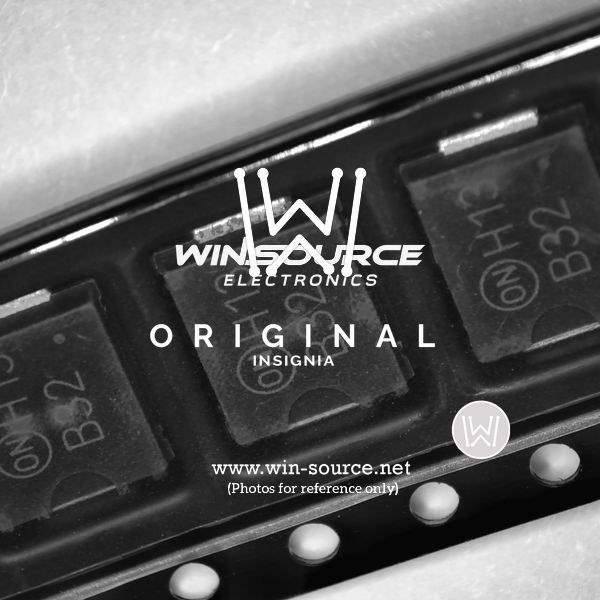

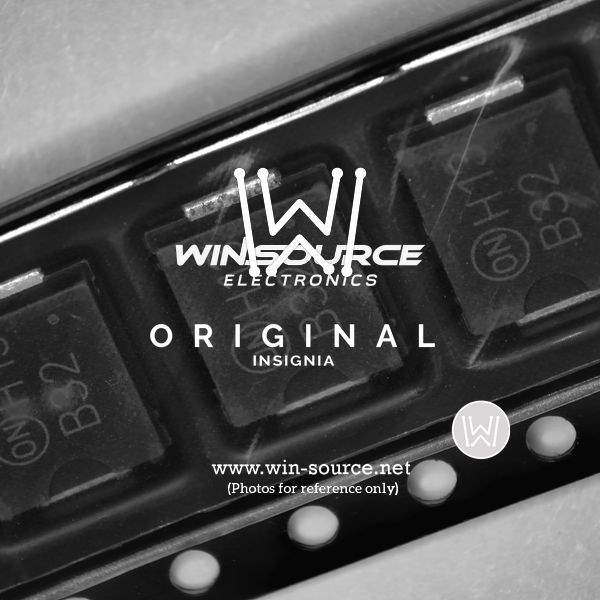

The device is packaged in an SMB (DO-214AA) format, which is compact and suitable for automated assembly processes, saving space on the PCB without compromising on power handling capabilities. Moreover, it is designed for high-temperature soldering, with a peak operating junction temperature range from -55°C to +150°C, ensuring reliable operation in extreme conditions.

ON Semiconductor's commitment to environmental sustainability is evident in the MBRS320T3G, as it is lead-free, halogen-free, and RoHS compliant. This commitment ensures that the product is suitable for use in green electronics and meets the requirements of environmentally conscious manufacturers and consumers.

In summary, the MBRS320T3G from ON Semiconductor is a high-performance Schottky rectifier that offers efficient power management solutions for designers looking to optimize their applications in terms of power loss, space, and reliability.
