Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bi-CMOS
Applications General Purpose
Output Current 3A
Supply Voltage - Operating 3 V to 5.5 V
Voltage - Load 9 V to 35 V
Temperature Range - Operating -20°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 36-SSOPJ
Win Source Part Number 119151-LV8761V-TLM-E
Ultra Librarian 3D Model Ultra Librarian LV8761V-TLM-E CAD Model

Description

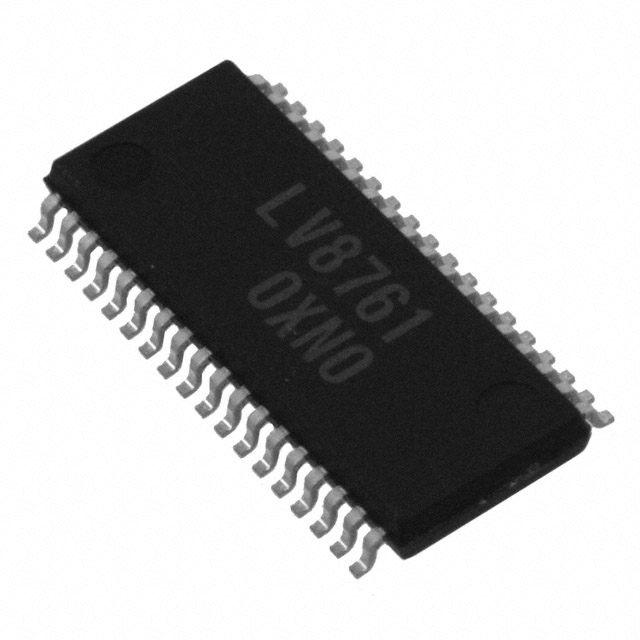

ON Semiconductor LV8761V-TLM-E Motor Driver IC

The LV8761V-TLM-E from ON Semiconductor is a highly-efficient, dual-channel H-bridge driver IC designed to handle low voltage stepper and DC motors. This compact and robust motor driver is an ideal choice for a wide range of applications including consumer electronics, office automation, healthcare devices, and small industrial equipment.

Key Features:

  • Operating Voltage Range: The LV8761V-TLM-E operates within a voltage range of 2.6V to 16V, making it versatile for various low voltage applications.
  • Output Current: It can deliver an output current of up to 1A per channel, providing sufficient power for small to medium-sized motors.
  • Dual H-Bridge: With its dual H-bridge configuration, this IC can drive two DC motors independently or one stepper motor, offering design flexibility.
  • Low RDS(on): The low on-resistance of the output transistors ensures higher efficiency and lower heat dissipation during operation.
  • Protection Features: It includes multiple protection features such as overcurrent protection, thermal shutdown, and under-voltage lockout, enhancing the reliability and longevity of the motor and the driver.
  • Control Interface: The IC supports both parallel and serial control interfaces, allowing for easy integration with a variety of microcontrollers.

Applications:

  • Battery-powered devices
  • Portable printers
  • Robotics
  • Medical devices
  • Small industrial automation systems

With its small package size, the LV8761V-TLM-E is designed for space-constrained applications. The driver IC is available in a TSSOP package, which is not only space-saving but also allows for efficient PCB layout design. ON Semiconductor's commitment to quality ensures that the LV8761V-TLM-E meets the rigorous demands of modern electronic devices, providing a reliable and efficient solution for motor control needs.

Overall, the LV8761V-TLM-E motor driver IC by ON Semiconductor is a high-performance, versatile component that brings together efficiency, compactness, and durability, making it an excellent choice for designers looking to optimize their motor control systems.
