The LV8019LP-MPB-E from ON Semiconductor is a highly efficient, low-voltage motor driver that is designed to deliver outstanding performance for a wide range of motor driving applications. This compact and versatile driver is particularly well-suited for portable and battery-powered devices due to its low power consumption and small form factor.

Key Features

• Motor Type Compatibility: The LV8019LP-MPB-E is capable of driving stepper motors, DC brush motors, and can be configured for full-step, half-step, quarter-step, or eighth-step modes, providing flexibility for various control requirements.
• Operating Voltage Range: It operates within a voltage range of 2.5V to 9.0V, making it ideal for low-voltage applications.
• Output Current: The device supports output currents up to 1A, allowing it to drive a wide range of small to medium-sized motors.
• Energy Efficiency: With its low on-resistance of the output transistors, the LV8019LP-MPB-E ensures minimal power loss and heat generation, enhancing the overall energy efficiency of the system.
• Built-in Protection Features: The motor driver includes thermal shutdown, under-voltage lockout, and over-current protection, safeguarding the device and the motor from potential damage due to abnormal operating conditions.

Applications

The LV8019LP-MPB-E is suitable for a variety of applications including, but not limited to:

• Battery-powered toys
• Portable electronic devices
• Small appliances
• Office automation machines
• Healthcare devices

Design and Integration

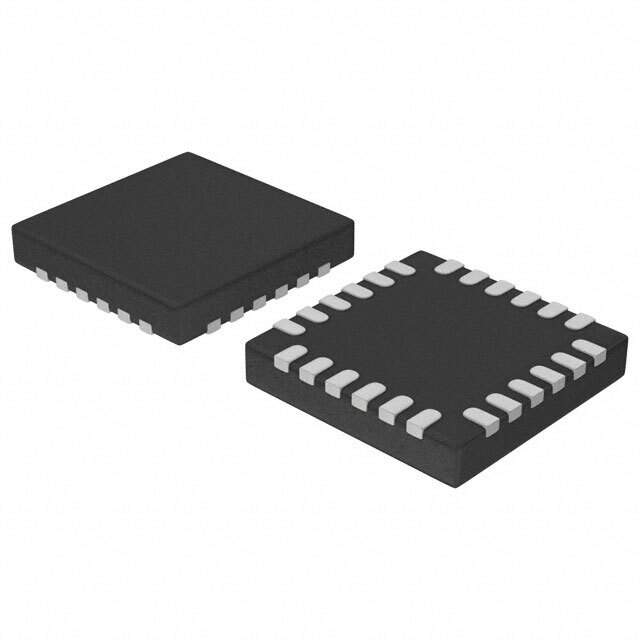

ON Semiconductor's LV8019LP-MPB-E comes in a compact, power-dissipating package that is easy to integrate into existing designs. Its small footprint allows for inclusion in space-constrained applications without sacrificing performance. The device's simple control interface enables easy integration with microcontrollers and other control circuitry, providing a streamlined solution for motor control.

For designers and engineers looking for a reliable and efficient solution for their motor driving needs, the LV8019LP-MPB-E motor driver from ON Semiconductor is an excellent choice that combines performance with practicality.
