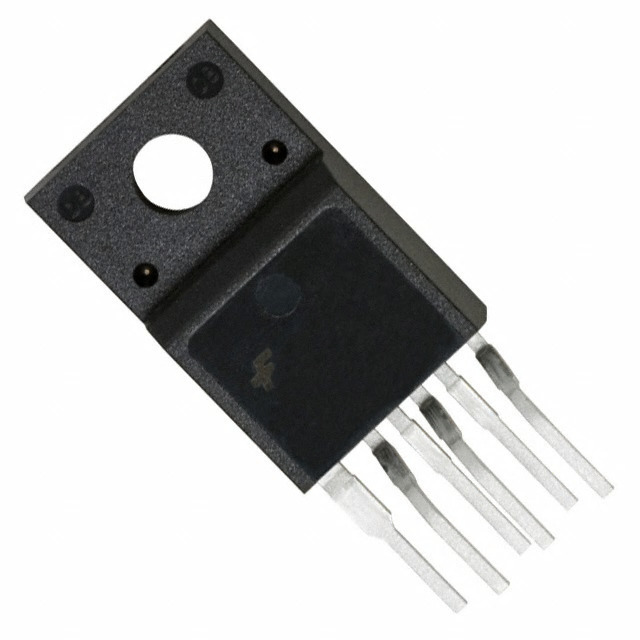

ON Semiconductor FSDM0565RWDTU Product Overview

The FSDM0565RWDTU is a cutting-edge electronic component manufactured by ON Semiconductor, a leading provider in the semiconductor industry. This product is a member of the Fairchild Power Switch (FPS) series, which are highly integrated power switches designed for high-efficiency power supply applications.

Key Features

• Precision Fixed Operating Frequency: The device operates at a fixed frequency of 67kHz, which provides a predictable performance and simplifies the design of the EMI filter.
• Advanced Burst-Mode Operation: Enhances efficiency at light-load conditions, saving energy and reducing standby power consumption.
• Internal High-Voltage Startup: This feature allows the device to start up efficiently without the need for external components, reducing system complexity and cost.
• Integrated Pulse Frequency Modulation (PFM) Control: Offers excellent efficiency over a wide range of loads by adjusting the switching frequency to reduce losses.
• Auto-Restart Protection: In the event of a fault condition such as overvoltage, overcurrent, or overload, the device enters an auto-restart mode, which helps protect the power supply and the load.
• Low Operating Current: The low operating current of the FSDM0565RWDTU minimizes standby power consumption, making it suitable for energy-sensitive applications.
• Under-Voltage Lockout (UVLO) with Hysteresis: Ensures that the device operates at the correct voltage levels, enhancing system reliability.

Applications

The FSDM0565RWDTU is ideal for a wide range of applications that require efficient power management. It is commonly used in:

• Switch Mode Power Supplies (SMPS)
• Adapters and Chargers
• Standby and Auxiliary Power Supplies
• Open-frame Switching Power Supplies

With its robust feature set and high level of integration, the FSDM0565RWDTU from ON Semiconductor is an excellent choice for designers looking to create compact, efficient, and reliable power supply solutions. The device's built-in protection features and energy-saving capabilities also make it a responsible choice for environmentally conscious applications.
