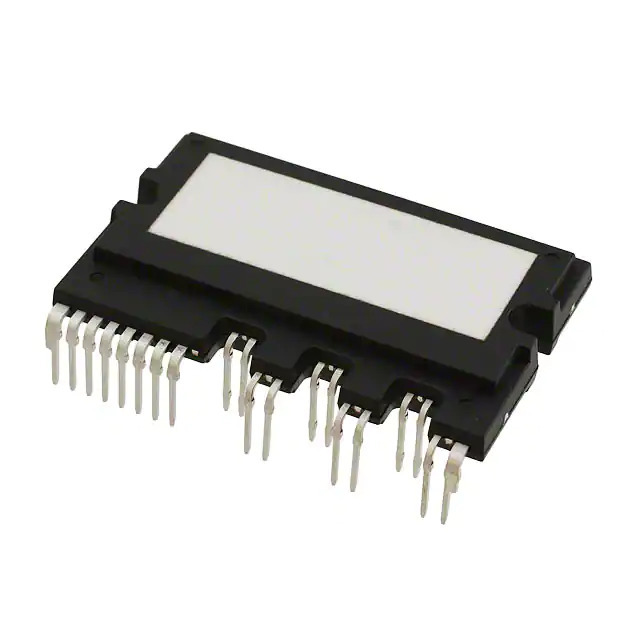

ON Semiconductor FSBB20CH120DF Smart Power Module

The ON Semiconductor FSBB20CH120DF is a cutting-edge smart power module that integrates IGBTs, freewheeling diodes, and gate drivers in a compact, thermally efficient package. Designed for high-performance applications, this module is an ideal choice for advanced motion control systems, renewable energy inverters, and power supply units that demand reliable and efficient power switching capabilities.

Key Features

• Integrated Design: The FSBB20CH120DF smart power module combines IGBTs, diodes, and gate drivers into a single package, simplifying design and reducing the overall footprint of the power circuit.
• High Voltage and Current Rating: With a 1200V rating and 20A continuous current capability, this module can handle demanding power applications with ease.
• Low Losses: The use of Field Stop IGBT technology ensures low conduction and switching losses, enhancing the efficiency of the overall system.
• Optimized Gate Drive: The integrated gate drivers are designed to provide optimal drive to the IGBTs, ensuring fast switching times and reduced EMI.
• Overcurrent Protection: The module includes an overcurrent protection feature, which helps to safeguard the module and the system it is part of against unexpected current spikes.
• Isolation: Electrical isolation between the power and control signals is maintained within the module, reducing the risk of electrical interference and enhancing system reliability.
• Thermal Management: The package is designed for excellent thermal performance, ensuring the module operates within its temperature specifications even under high load conditions.

Applications

• AC and DC motor drives
• Renewable energy systems such as solar inverters and wind turbines
• Uninterruptible power supplies (UPS)
• Industrial automation and control systems

The ON Semiconductor FSBB20CH120DF is a robust and versatile smart power module that brings together advanced semiconductor technology and smart integration to deliver a high-performance solution for a wide range of power applications. Its ease of use, combined with its powerful features, makes it a top choice for engineers looking to optimize their power systems for both performance and reliability.
