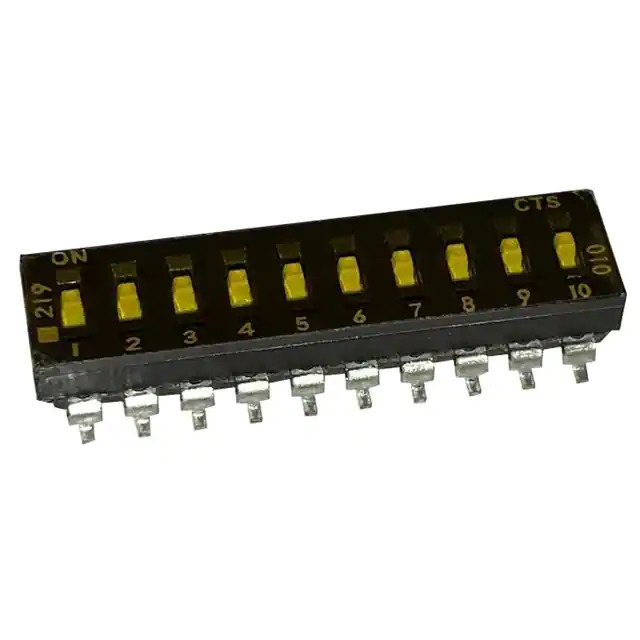

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 219
Package Tube
Product Status Active
Circuit SPST
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.160" (4.06mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material -
Length 1.058" (26.87mm)
Mechanical Life -
Electrical Life 2,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376411-219-10LPST
Ultra Librarian 3D Model Ultra Librarian 219-10LPST CAD Model

Description

The 219-10LPST is a surface mount DIP switch from CTS Electrocomponents.

  • Series: 219
  • Actuator Type: Slide
  • Positions: 10
  • Current Rating: 100mA
  • Voltage Rating: 20VDC
  • Contact Finish: Gold
  • Termination Type: Gull Wing
  • Package: Tube
  • Height Above Board: 0.160" (4.06mm)
  • Length: 1.058" (26.87mm)
  • Washable: Yes
  • Electrical Life: 2,000 Cycles
  • Contact Material: Beryllium Copper
