Product Overview: FOD816SD Optocoupler from ON Semiconductor

The FOD816SD is a high-performance optocoupler designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This optoelectronic device is engineered to provide electrical isolation between its input and output, safeguarding electronic components and human operators from high voltages.

Key Features

• High Isolation Voltage: The FOD816SD offers an impressive isolation voltage of 5000Vrms, making it an excellent choice for applications that require stringent electrical isolation.
• Current Transfer Ratio (CTR): With a CTR range from 50% to 600%, this optocoupler ensures reliable signal transfer between circuits under various conditions.
• Forward Current: It can handle a forward current of up to 60mA, which is suitable for a wide range of driving conditions.
• Response Time: The device boasts a fast response time, with a typical rise time of 4μs and fall time of 3μs, ensuring swift signal transmission.
• Temperature Range: The FOD816SD operates effectively within a temperature range of -55°C to +110°C, accommodating diverse environmental conditions.

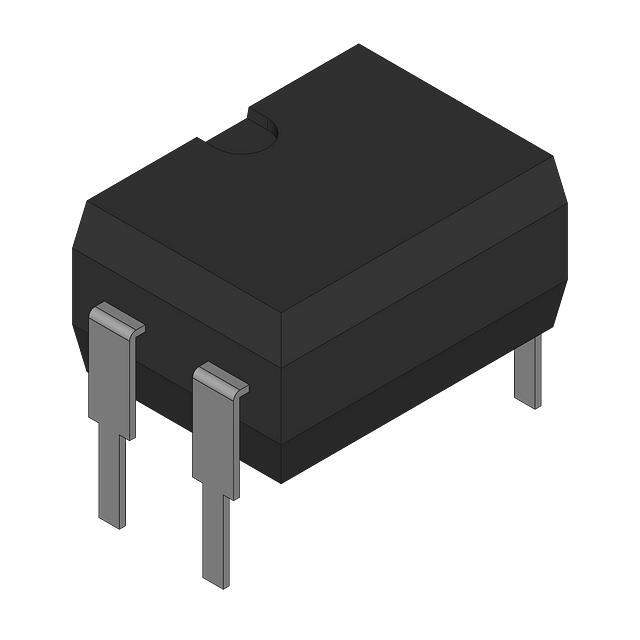

• Package: It comes in a compact 4-pin DIP package, making it easy to incorporate into various designs without requiring significant board space.
• Safety Standards: This optocoupler is approved by major safety standards, including UL, CSA, and VDE, which attest to its reliability and safety in operation.

Applications

The FOD816SD is versatile and can be used in a variety of applications, such as:

• Isolation in AC mains detection
• Signal isolation in communication systems
• Switching power supplies
• Industrial controls
• Motor control systems

Conclusion

In summary, the FOD816SD from ON Semiconductor is a robust and reliable optocoupler that offers excellent electrical isolation combined with high-speed performance. Its compliance with international safety standards and its ability to operate under a wide range of temperatures make it a safe and versatile choice for designers looking to enhance the safety and reliability of their electronic systems.
