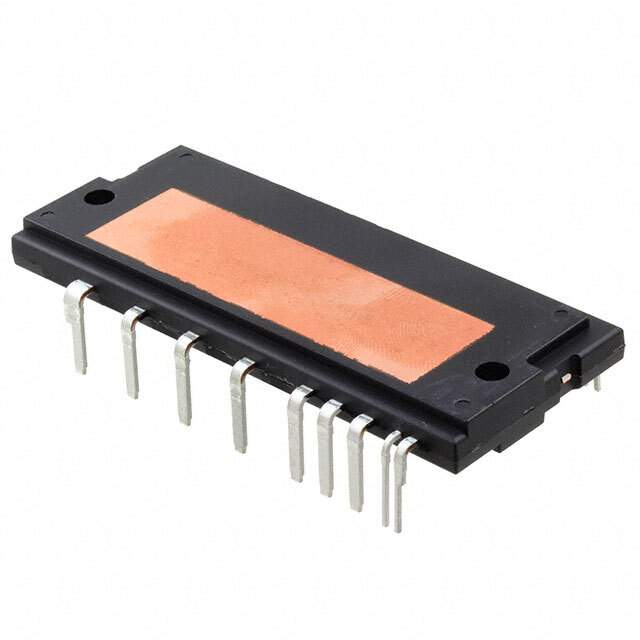

The FNA23060 is an advanced Integrated Power Module (IPM) designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This power module is specifically engineered to deliver high efficiency and reliability for a wide range of motor drive applications, including but not limited to, air conditioners, refrigerators, washing machines, and industrial drives.

Key Features

• Compact Design: The FNA23060 integrates multiple components into a single package, which helps to reduce board space and simplifies the overall design and assembly process for power systems.
• High-Efficiency Operation: With its advanced IGBT technology, this module is capable of operating at high frequencies with reduced losses, ensuring efficient power conversion and reduced heat generation.
• Integrated Under-Voltage Lockout: The built-in under-voltage lockout feature ensures the protection of the IGBTs by preventing operation when the input voltage is below a set threshold, enhancing the safety and longevity of the module.
• Overcurrent Protection: The module includes overcurrent protection, which safeguards the device against excessive currents that could potentially cause damage to the power module and the system it is controlling.
• Temperature Monitoring: An integrated temperature sensor allows for real-time monitoring of the module's operating temperature, facilitating thermal management and preventing overheating.

Electrical Specifications

The FNA23060 is designed to handle significant power levels with a maximum rated voltage of 600V and a rated current of 30A. Its three-phase IGBT inverter bridge configuration is optimized for efficient switching and provides a robust solution for AC-DC motor drives.

Applications

ON Semiconductor's FNA23060 is versatile and can be used in various applications that require high power density and efficient operation. Its robust design is ideal for home appliances, HVAC systems, and industrial motor control, where reliability and performance are critical.

Conclusion

The FNA23060 from ON Semiconductor is a testament to the company's commitment to providing high-quality, integrated power solutions. Its compact design, combined with advanced protection features and efficient operation, make it an excellent choice for designers looking to optimize their power systems with a reliable and high-performing module.
