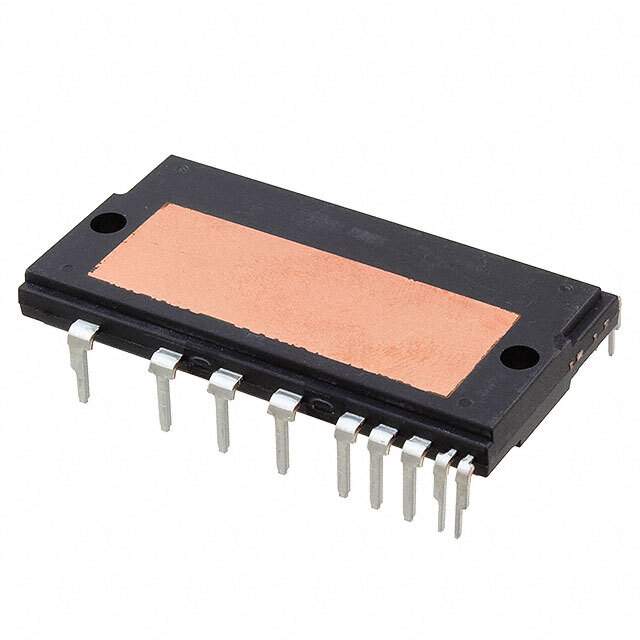

FSAM50SM60A Real Image
Same model may have multiple batches, images only for reference.

FSAM50SM60A

Part No FSAM50SM60A
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description SPMTM (Smart Power Module)
Datasheet
FSAM50SM60A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series Motion SPM 2
Type IGBT
Configuration 3 Phase
Current 50A
Voltage 600V
Voltage - Isolation 2500Vrms
Package 32-PowerDIP Module (1.370", 34.80mm)
Win Source Part Number 1175854-FSAM50SM60A
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 48
Family Name FSAM50SM60A
Introduction Date April 02, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian FSAM50SM60A CAD Model

Description

The FSAM50SM60A is a 3-phase IGBT module manufactured by Fairchild/ON Semiconductor.

  • Configuration: 3-phase
  • Voltage Rating: 600V
  • Current Rating: 50A
  • Package: 32-PowerDIP module (1.370", 34.80mm)
  • Voltage Isolation: 2500Vrms
  • Halogen-Free: Compliant
  • Estimated EOL date: 2019
  • Supply and demand status: Limited
  • Package: 48
