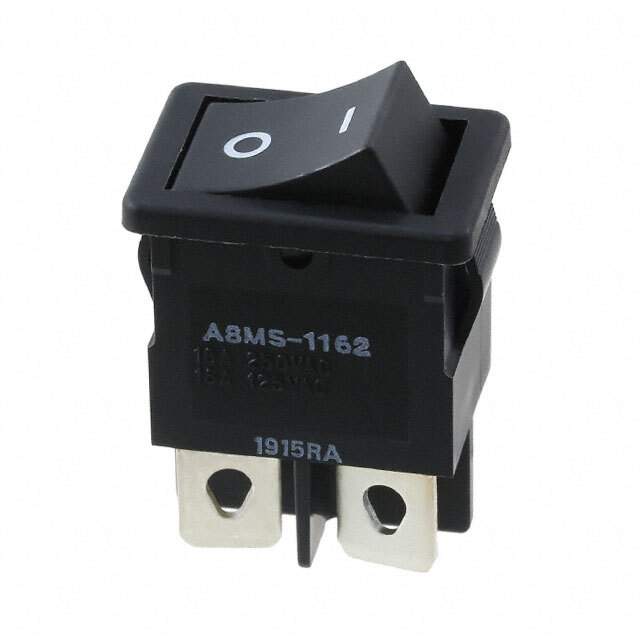

A8MS-1162 Real Image
Same model may have multiple batches, images only for reference.

A8MS-1162

Part No A8MS-1162
Manufacturer Omron
Catalog Rocker Switches
Description SWITCH ROCKER SPST 16A 125V / Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
Datasheet
A8MS-1162 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr Omron Electronics Inc-EMC Div
Series A8M
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O I
Termination Style Solder, Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Rectangular - 19.20mm x 12.90mm
Temperature Range - Operating -25°C ~ 55°C
Mechanical Life 50,000 Cycles
Electrical Life 10,000 Cycles
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1342158-A8MS-1162
Ultra Librarian 3D Model Ultra Librarian A8MS-1162 CAD Model

Description

The Omron 1342158-A8MS-1162 is a panel mount, snap-in SPST rocker switch with a concave (curved) actuator type.

  • Voltage Rating: 125 VAC
  • Current Rating: 16A
  • Temperature Range: -25°C to 55°C
  • Electrical Cycles: up to 10,000
  • Mechanical Cycles: up to 50,000
  • Panel Cutout: rectangular with dimensions of 19.20mm x 12.90mm
  • Status: obsolete
  • Standard Package: 100
