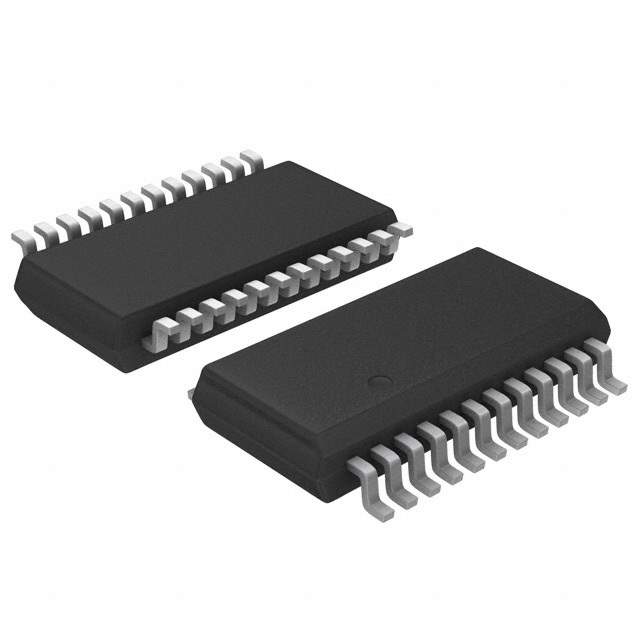

The CAT4016VS-T2 from ON Semiconductor is a high-performance, 16-channel constant-current sink LED driver designed for a variety of lighting applications. This versatile component is ideal for LED billboard displays, LED signage, and general-purpose LED lighting systems that require precise current control to ensure uniform brightness across multiple LEDs.

Key Features

• 16-Channel Output: Each channel can sink up to 120 mA, allowing for control of multiple LEDs with a single driver.
• Current Matching: Superior inter-channel and chip-to-chip accuracy (±3%) ensures consistent brightness and color for all LEDs, which is critical for high-quality visual displays.
• Wide Operating Voltage Range: The device operates from a 3 V to 5.5 V supply, making it suitable for use with a variety of power sources.
• Thermal Shutdown Protection: Built-in thermal shutdown protection enhances the reliability and longevity of both the driver and the LEDs it controls.
• Serial Interface: The CAT4016VS-T2 features a serial interface for communication, which reduces wiring complexity and allows multiple devices to be cascaded for extended control of large LED arrays.

Applications

The CAT4016VS-T2 is a versatile LED driver that can be used in a wide range of applications, including:

• LED Video Displays
• Message Boards
• Commercial and Industrial Lighting
• Architectural Lighting
• Automotive Interior and Exterior Lighting

Product Specifications

With its robust feature set, the CAT4016VS-T2 is a reliable choice for engineers and designers looking to create sophisticated LED lighting solutions with consistent performance and ease of integration.
