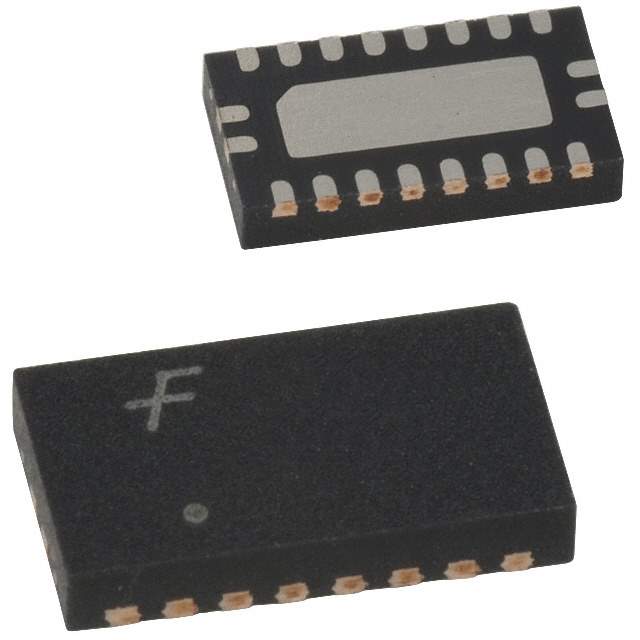

Product Overview: 74VCX245BQX from ON Semiconductor

The 74VCX245BQX is a high-performance, low-voltage octal bidirectional transceiver with 3-state outputs from ON Semiconductor. This integrated circuit is designed for asynchronous communication between data buses and is a part of ON Semiconductor's advanced VCX line of products, which are engineered to operate at 3.3V while maintaining 5V tolerant inputs and outputs.

Key Features

• Low Voltage Operation: The device is optimized for 3.3V VCC operation but also has 5V tolerant inputs and outputs, making it suitable for interfacing with both 3.3V and 5V logic levels.
• High-Speed Interface: With a propagation delay (tpd) of 2.6ns at 3.3V, the 74VCX245BQX ensures swift data transfer between buses, making it ideal for high-speed applications.
• Power-Off Protection: Inputs and outputs incorporate power-off protection, which ensures that the device remains in a high-impedance state when powered down.
• Low Power Consumption: The IC features a low quiescent current, significantly reducing power consumption and making it suitable for energy-sensitive designs.
• Bus Hold on Data Inputs: The device eliminates the need for external pull-up or pull-down resistors, simplifying PCB design and reducing component count.
• Multiple Package Options: Available in a variety of packages, the 74VCX245BQX offers flexibility for different space and performance requirements.

Applications

The 74VCX245BQX is versatile and can be used in a wide range of applications, including:

• Communication systems
• Data bus transceivers for data processing
• Memory interface circuits
• Network routers and switches

Reliability and Quality

ON Semiconductor is known for its commitment to quality and reliability, and the 74VCX245BQX is no exception. It is manufactured under stringent conditions to ensure high performance and durability for industrial and commercial applications. With its advanced features and robust design, the 74VCX245BQX is an excellent choice for designers looking for a reliable bus transceiver solution.
