ON Semiconductor 2N6292 Bipolar Power Transistor

The ON Semiconductor 2N6292 is a versatile NPN bipolar junction transistor (BJT) designed for general-purpose amplifier and switching applications. This power transistor is capable of handling moderate power levels while operating at high efficiency, making it suitable for a wide range of electronic circuits.

Key Features:

• Voltage & Current Ratings: The 2N6292 can handle collector-emitter voltages up to 70V and collector currents up to 7A, providing ample headroom for various applications.
• Power Dissipation: With a power dissipation rating of 40W, this transistor can manage significant thermal loads, ensuring reliable operation under strenuous conditions.
• High DC Current Gain: It offers a high DC current gain (hFE), which typically ranges from 30 to 240 depending on the collector current, making it efficient in amplifying signals.

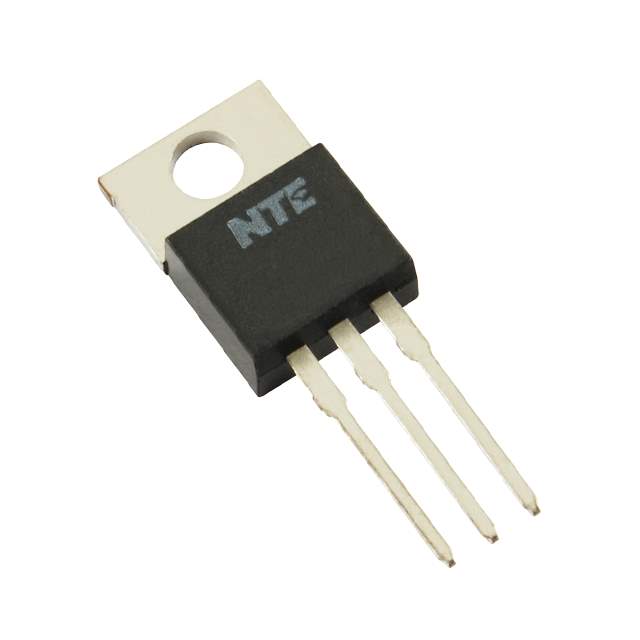

• TO-220 Package: Housed in a TO-220 package, the 2N6292 ensures ease of mounting and adequate heat dissipation. The industry-standard package allows for straightforward integration into a variety of circuit designs.

Applications:

The 2N6292 transistor is commonly used in power linear and switching applications. Its robustness and reliability make it ideal for use in:

• Power regulators
• Motor controls
• Audio amplifiers
• Switching circuits
• Driver stages in hi-fi amplifiers and television circuits

Quality and Reliability:

ON Semiconductor is known for its commitment to quality, and the 2N6292 is no exception. Each transistor is manufactured to meet stringent quality standards, ensuring consistent performance and longevity. The device is also RoHS compliant, adhering to environmental standards by avoiding the use of hazardous substances.

Conclusion:

Whether you are designing a simple audio amplifier or a complex motor control system, the ON Semiconductor 2N6292 offers the reliability and performance needed for your application. Its combination of power handling capabilities, efficiency, and thermal resilience makes it a go-to choice for engineers and hobbyists alike.
