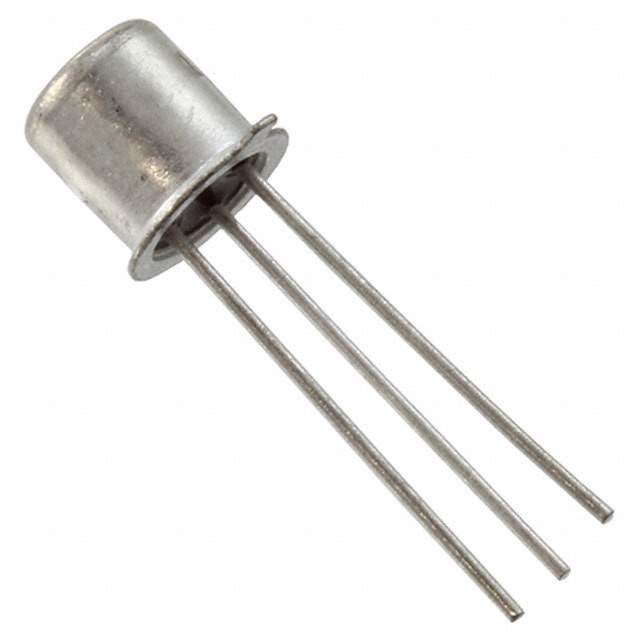

2N3947 Real Image
Same model may have multiple batches, images only for reference.

2N3947

Part No 2N3947
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Single
Description Bipolar NPN Device in a Hermetically sealed TO18 | THROUGH-HOLE TRANSISTOR-SMALL SI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 200mA
Voltage - Collector Emitter Breakdown (Maximum) 40V
Vce Saturation (Maximum) at Ib, Ic 300mV at 5mA, 50mA
DC Current Gain (hFE) (Minimum) at Ic, Vce 100 at 10mA, 1V
Maximum Power 1.2W
Frequency - Transition 300MHz
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-206AA, TO-18-3 Metal Can
Supplier Device Package TO-18
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Win Source Part Number 1123819-2N3947
Manufacturer Homepage www.semelab.co.uk
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N3947 CAD Model

Description

The Central Semiconductor Corp 2N3947 is an NPN transistor designed for use in discrete semiconductor products.

  • Frequency Transition: It has a frequency transition of 300MHz
  • Maximum Collector Current: and a maximum collector current of 200mA.
  • Collector-Emitter Breakdown Voltage: The voltage @ which the collector-emitter breakdown occurs is 40V
  • Vce Saturation: and it has a Vce saturation of 300mV @ 5mA, 50mA.
  • DC Current Gain (hFE): The DC current gain (hFE) is 100 @ 10mA, 1V.
  • Package: The transistor is packaged in a TO-18-3 metal can
  • Temperature Range: and has a temperature range of -65°C to 200°C.
