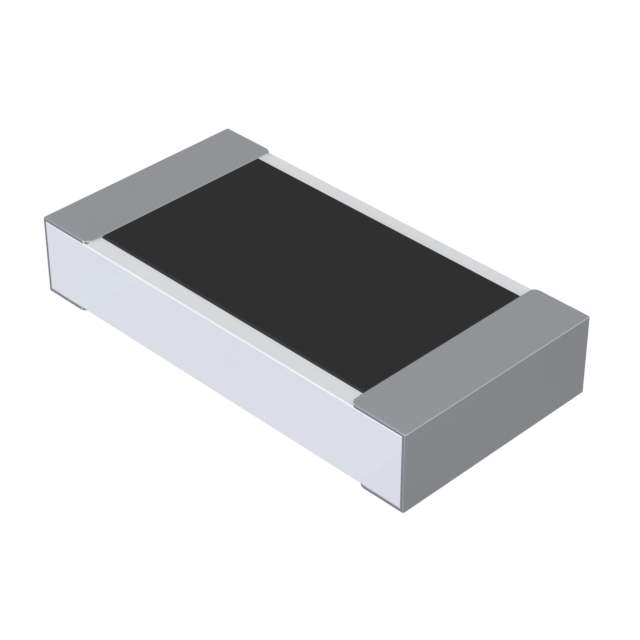

RL73K2BR18JTD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series RL73, CGS
Package Tape & Reel
Resistance 180 mOhms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number RL73K2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A103271TR,A103271DKR,6-1622825-8-ND,A103271CT,616228258,6-1622825-8
Standard Package 5,000
Win Source Part Number 993690-RL73K2BR18JTD
Ultra Librarian 3D Model Ultra Librarian RL73K2BR18JTD CAD Model

Description

The RL73K2BR18JTD electronic component is manufactured by TE Connectivity Passive Product.

  • Product Type: chip resistor surface mount
  • Series: RL73, CGS
  • Win Source Part Number: 993690-RL73K2BR18JTD
  • Package/Case: 1206 (3216 Metric)
  • Resistance: 180 mOhms
  • Power: 0.25W, 1/4W
