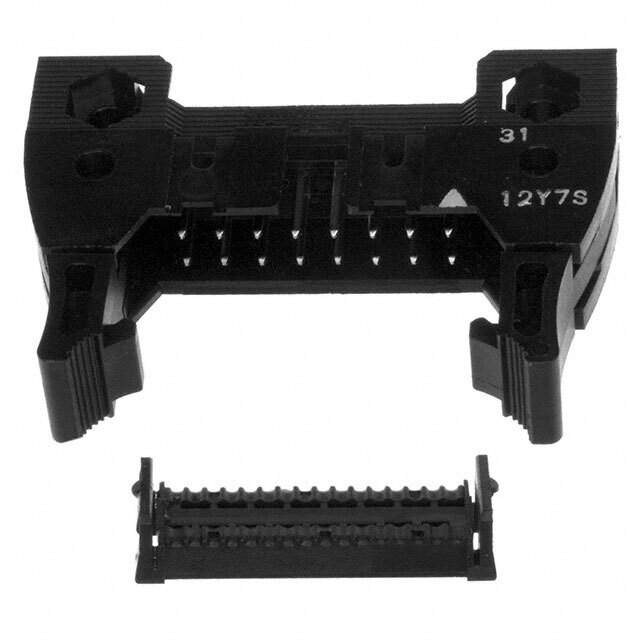

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Plug
Contact Type Male Pin
Number of Positions 16
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Fastening Type Latch Lock/Eject Hooks, Long
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through
Contact Finish Gold
Contact Finish Thickness 5.90µin (0.150µm)
Color Black
Base Product Number XG4E
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XG4E1631-ND,XG4E1631,2266-XG4E-1631,OR998
Standard Package 80
Win Source Part Number 1178596-XG4E-1631
Ultra Librarian 3D Model Ultra Librarian XG4E-1631 CAD Model

Description

The XG4 series rectangular connector by Omron Electronics Inc-EMC Div has a pitch of 0.100" (2.54mm) and is a feed-through plug with male pin contacts.

  • Pitch: 0.100" (2.54mm)
  • Connector Type: Plug
  • Contact Type: Male Pin
  • Positions: 16
  • Rows: Two
  • Row Spacing: 0.100" (2.54mm)
  • Fastening Type: Latch Lock/Eject Hooks, Long
  • Contact Finish: Gold, 5.90µin (0.150µm) Thickness
  • Package: Tray
  • Application: Connectors and Interconnects
