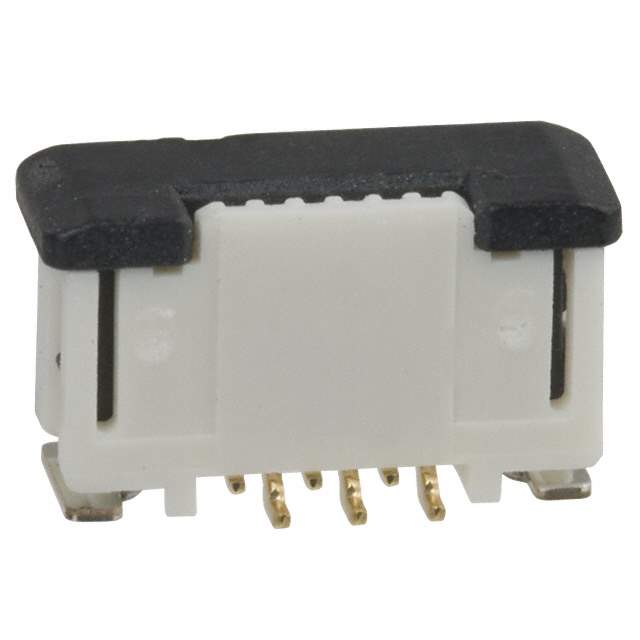

XF2J-0624-11 Real Image
Same model may have multiple batches, images only for reference.

XF2J-0624-11

Part No XF2J-0624-11
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 6POS 0.5MM SMD / 6 Position FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
XF2J-0624-11 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Omron Electronics Inc-EMC Div
Series XF2J
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 6
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.163" (4.15mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Tin Alloy
Housing Material Polyamide (PA46) , Nylon 4/6
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 78.7µin (2.00µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 30
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1351546-XF2J-0624-11
Ultra Librarian 3D Model Ultra Librarian XF2J-0624-11 CAD Model

Description

The XF2J-0624-11 is a FFC, FPC (Flat Flexible) Connector Assembly designed for use in various applications.

  • Positions: 6
  • Pitch: 0.020" (0.50mm)
  • Features: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Tin Alloy
  • Contact Finish Thickness: 78.7µin (2.00µm)
  • Package: Tape & Reel (TR) Cut Tape (CT)
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Height Above Board: 0.163" (4.15mm)
  • Flat Flex Type: FPC
  • Connector/Contact Type: Contacts, Vertical - 1 Sided
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: Slide Lock
  • Cable End Type: Tapered
  • Housing Material: Polyamide (PA46) , Nylon 4/6
  • Flammability Rating: UL94 V-0
  • Housing Color: Natural
  • Standard Package: 1,000
  • Mating Cycles: 30
  • Mounting Type: Surface Mount
  • Temperature Range: -30°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 0.5A
  • REACH: Unaffected
  • HTSUS: 8536.69.4051
  • Manufacturer: Omron Electronics Inc-EMC Div
  • Status: Obsolete
