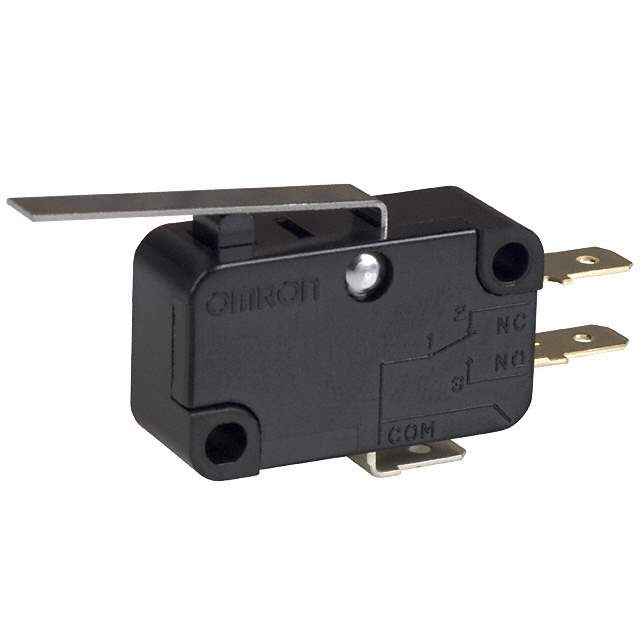

V-152-1C25 Real Image
Same model may have multiple batches, images only for reference.

V-152-1C25

Part No V-152-1C25
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description Miniature Basic Switch that Offers High Reliability and Security | SWITCH SNAP ACTION SPDT 15A 250V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 600mA (DC)
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Actuator Type Lever, Straight
Mounting Style Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection IP40
Operating Force 125gf
Release Force 14gf
Pretravel 0.157" (4.0mm)
Differential Travel 0.060" (1.5mm)
Overtravel 0.062" (1.6mm)
Temperature Range - Operating -25°C ~ 80°C
Operating Position 0.600" (15.2mm)
Electrical Life 100,000 Cycles
Mechanical Life 50,000,000 Cycles
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1278792-V-152-1C25
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian V-152-1C25 CAD Model

Description

The Omron Electronics Inc-EMC Div 542430 is a chassis mount switch with a quick connect termination style.

  • Ingress Protection: IP40
  • Voltage Rating: 250V AC and 125V DC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Electrical Life: 100,000 cycles
  • Operating Force: 125gf
  • Mechanical Life: 50,000,000 cycles
  • Release Force: 14gf
  • Pretravel: 0.157" (4.0mm)
  • Differential Travel: 0.060" (1.5mm)
  • Overtravel: 0.062" (1.6mm)
  • Operating Position: 0.600" (15.2mm)
  • Temperature Range for Operating: -25°C ~ 80°C
