Same model may have multiple batches, images only for reference.

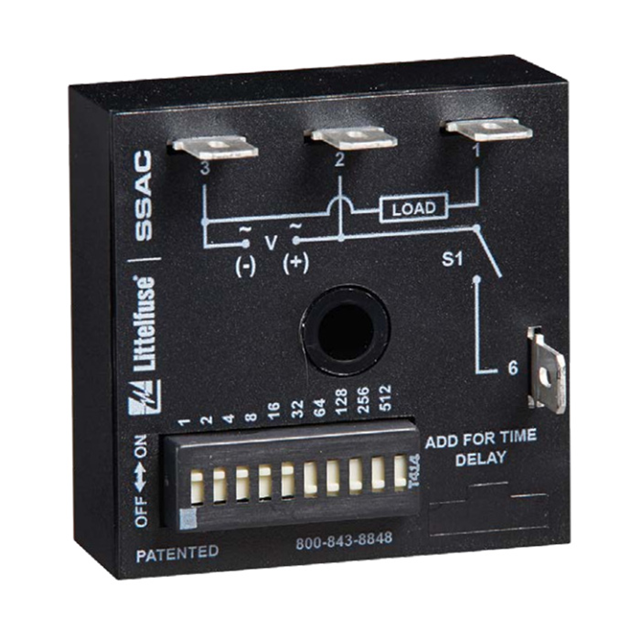

TDUSL3000A Real Image
Same model may have multiple batches, images only for reference.

TDUSL3000A

Part No TDUSL3000A
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 102.3SEC / One Shot Time Delay Relay SPST-NO (1 Form A) 0.1 Sec ~ 102.3 Sec Delay Chassis Mount
Datasheet
TDUSL3000A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series TDUS
Package Bulk
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function One Shot
Circuit SPST-NO (1 Form A)
Delay Time 0.1 Sec ~ 102.3 Sec
Voltage - Supply 24 ~ 120VAC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method DIP Switches
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names -1024-TDUSL3000A
Standard Package 1
Win Source Part Number 1142530-TDUSL3000A
Ultra Librarian 3D Model Ultra Librarian TDUSL3000A CAD Model

Description

The Littelfuse Inc. 1020279 is a solid state relay time delay with a delay time of 0.1 Sec ~ 102.3 Sec from Littelfuse Inc.

  • Function: Solid State Relay Time Delay
  • Delay Time: 0.1 Sec ~ 102.3 Sec
  • Circuit: SPST-NO (1 Form A)
  • Voltage Supply: 24 ~ 120VAC
  • Mounting: Chassis Mount
  • Termination Style: 0.250" (6.3mm) Quick Connect
  • Timing Adjustment Method: DIP Switches
  • Timing Initiate Method: Input Voltage
  • ROHS: Compliant
  • ECCN: EAR99
