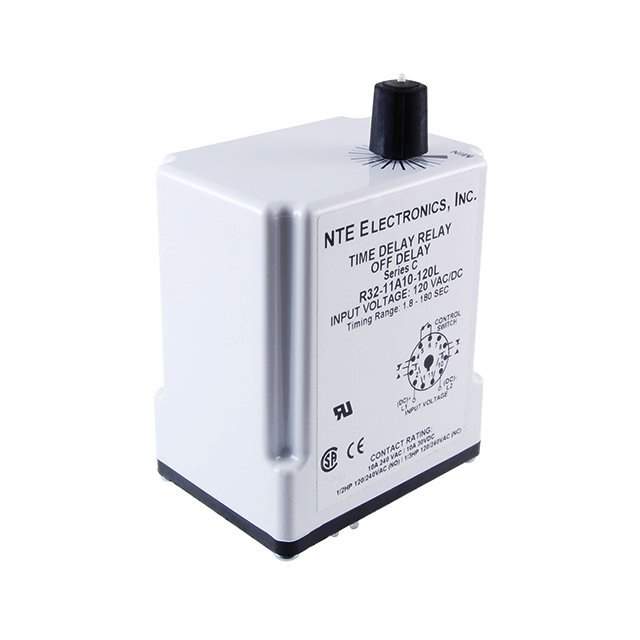

R32-11A10-120L Real Image
Same model may have multiple batches, images only for reference.

R32-11A10-120L

Part No R32-11A10-120L
Manufacturer NTE
Catalog Power Relays, Over 2 Amps
Description RELAY TIME DELAY 10A 120V  /  Off-Delay Time Delay Relay DPDT (2 Form C) Delay 10A @ 120VAC/30VDC
Datasheet
R32-11A10-120L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr NTE Electronics, Inc
Series R32
Package Bulk
Relay Type Mechanical Relay
Function Off-Delay
Circuit DPDT (2 Form C)
Contact Rating @ Voltage 10A @ 120VAC/30VDC
Voltage - Supply 120VAC
Termination Style Plug In, 11 Pin (Octal)
ECCN EAR99
HTSUS 8536.49.0075
Other Names 2368-R32-11A10-120L
Standard Package 1
Win Source Part Number 1184376-R32-11A10-120L
Ultra Librarian 3D Model Ultra Librarian R32-11A10-120L CAD Model

Description

The R32 series off-delay time delay relay from NTE Electronics, Inc is a mechanical relay designed for industrial automation and controls applications.

  • Circuit Configuration: DPDT (2 Form C)
  • Termination Style: Plug-In, 11-Pin (Octal)
  • Contact Rating: 10A @ 120VAC/30VDC
  • Voltage Supply: 120VAC
  • Function: Off-Delay
