TSD1424
Same model may have multiple batches, images only for reference.

TSD1424

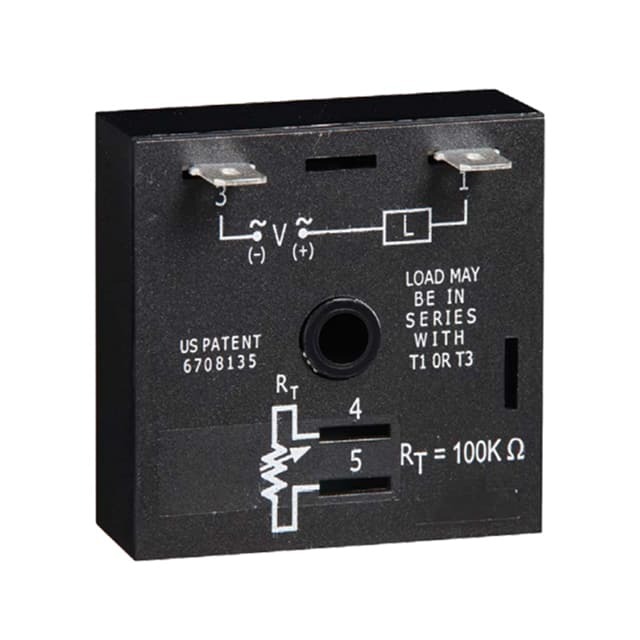

Part No TSD1424
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 100MIN
Datasheet
TSD1424 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls - Time Delay Relays
Mfr Littelfuse Inc.
Series TSD1
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function On-Delay
Circuit SPST-NO (1 Form A)
Delay Time 1 Min ~ 100 Min
Voltage - Supply 120VAC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method External Resistor
Timing Initiate Method Input Voltage
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9107.00.8000
California Prop 65 Warning Information
Win Source Part Number 937662-TSD1424
Ultra Librarian 3D Model Ultra Librarian TSD1424 CAD Model

Description

The TSD1424 is a time delay relay designed for industrial automation and control systems from Littelfuse Inc.

  • Type: Time Delay Relay
  • Series: TSD1
  • Termination Style: Quick Connect
  • Packaging: Bulk package of 10 pcs
  • Function: On-Delay
  • Circuit Configuration: SPST-NO (1 Form A)
  • Supply Voltage: 120VAC
  • Delay Time: 1 minute to 100 minutes
  • Mounting: Chassis
  • Status: Active
  • Compliance: California Prop 65
