Same model may have multiple batches, images only for reference.

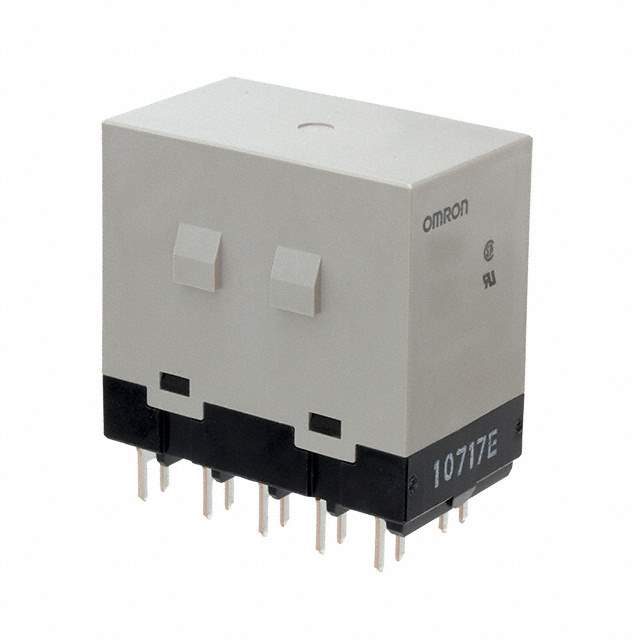

G7J-4A-P DC24 Real Image
Same model may have multiple batches, images only for reference.

G7J-4A-P DC24

Part No G7J-4A-P DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PST 25A 24V
Datasheet
G7J-4A-P DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Automation and Safety
Series G7J
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 83mA
Coil Voltage 24VDC
Contact Form 4PST (4 Form A)
Contact Rating (Current) 25A
Switching Voltage 250VAC, 125VDC - Max
Turn On Voltage (Maximum) 18 VDC
Turn Off Voltage (Minimum) 2.4 VDC
Operate Time 50ms
Release Time 50ms
Features Test Button
Mounting Style Through Hole
Termination Style PC Pin
Coil Power 2 W
Coil Resistance 288 Ohms
Operating Temperature Range -25°C ~ 60°C
Win Source Part Number 774963-G7J-4A-P DC24
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G7J-4A-P DC24 CAD Model

Description

The Omron Automation and Safety G7J-4A-P DC24 relay is a general-purpose non-latching relay with a 4PST (4 Form A) contact form.

  • Coil Type: Non-latching
  • Contact Form: 4PST (4 Form A)
  • Coil Voltage: 24VDC
  • Coil Resistance: 288 Ohms
  • Contact Rating: 25A
  • Switching Voltage: 250VAC, 125VDC - Max
  • Operating Temperature: -25°C to 60°C
  • Test Button: Yes
  • Mounting Style: Through-hole
  • Termination Style: PC pin
  • Operate Time: 50ms
  • Release Time: 50ms
  • Coil Power: 2W
