Same model may have multiple batches, images only for reference.

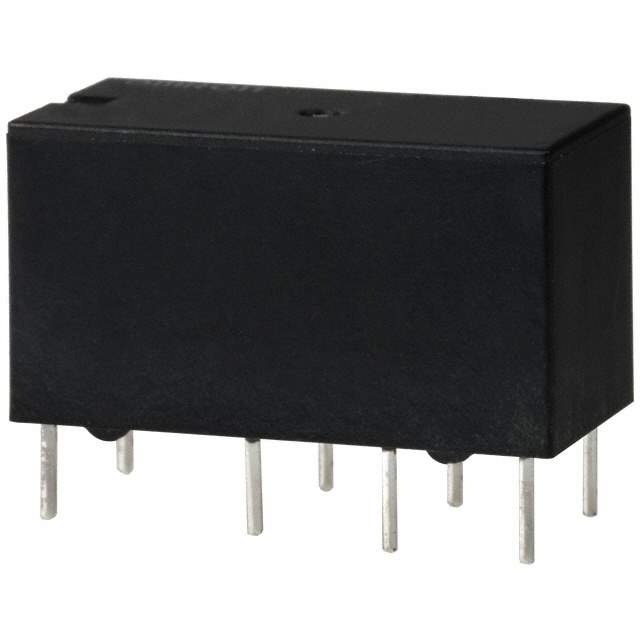

G5V-2-H-DC12 Real Image
Same model may have multiple batches, images only for reference.

G5V-2-H-DC12

Part No G5V-2-H-DC12
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 12V
Datasheet
G5V-2-H-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G5V-2
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 125VAC, 125VDC - Max
Turn On Voltage (Maximum) 9 VDC
Turn Off Voltage (Minimum) 0.6 VDC
Operate Time 7ms
Release Time 3ms
Features Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver (Ag), Gold (Au)
Coil Power 360 mW
Coil Resistance 400 Ohms
Operating Temperature Range -25°C ~ 65°C
Win Source Part Number 774947-G5V-2-H-DC12
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G5V-2-H-DC12 CAD Model

Description

The Omron G5V-2 series relay is a general type relay with DPDT (2 Form C) contact form.

  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 12VDC
  • Coil Resistance: 400 Ohms
  • Switching Voltage: 125VAC, 125VDC - Max
  • Contact Rating: 2A
  • Sealed: Fully sealed
  • Mounting Type: Through hole
  • Termination: PC pin
  • Release Time: 3ms
  • Operate Time: 7ms
