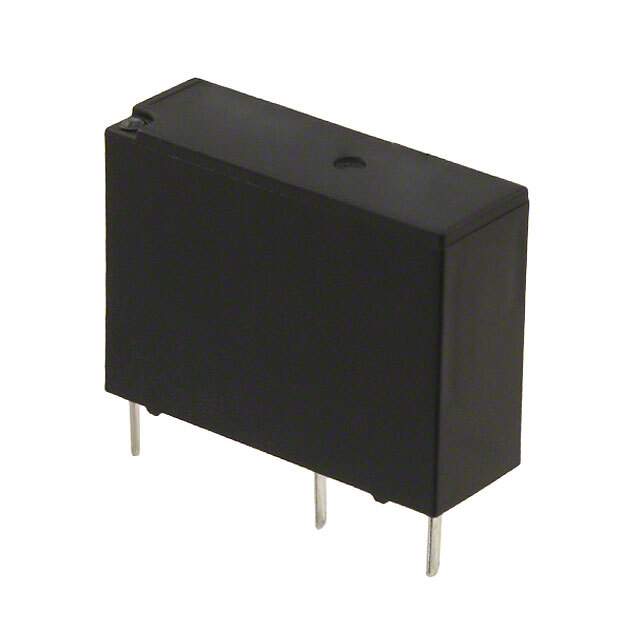

G5NB-1A-E DC12 Real Image
Same model may have multiple batches, images only for reference.

G5NB-1A-E DC12

Part No G5NB-1A-E DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5NB-E
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number G5NB
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1314411-G5NB-1A-E DC12
Ultra Librarian 3D Model Ultra Librarian G5NB-1A-E DC12 CAD Model

Description

The Omron G5NB-1A-E DC12 is a general-purpose power relay with a SPST-NO (1 Form A) contact form.

  • Termination Style: PC Pin
  • Coil Voltage: 12VDC
  • Contact Rating: 5A
  • Switching Voltage: 250VAC, 30VDC - Max
  • Protection: Sealed - Flux Protection
  • Mounting Type: Through-Hole
  • Win Source Part Number: 1314411-G5NB-1A-E DC12
