Same model may have multiple batches, images only for reference.

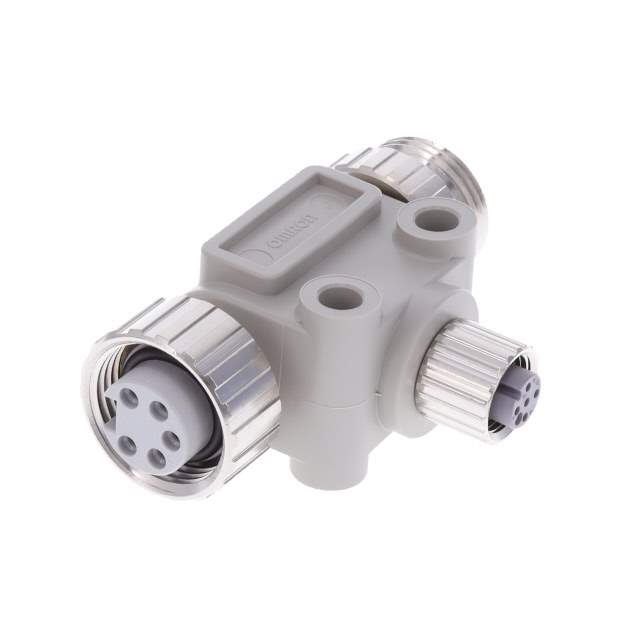

DCN3-12 Real Image
Same model may have multiple batches, images only for reference.

DCN3-12

Part No DCN3-12
Manufacturer Omron
Catalog Circular Connectors
Description CONN T-ADPT 5P-5/5P F-F/M INLINE  /  Circular Connector Distributor T-Shaped 5/5 (2) Female Sockets/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Adapters
Mfr Omron Automation and Safety
Series DeviceNet™
Package Bulk
Connector Style Distributor T-Shaped
Convert From (Adapter End) Female Sockets
Convert To (Adapter End) Female Sockets (1), Male Pins (1)
Shell Size - Insert (Convert From) M12
Shell Size - Insert (Convert To) 7/8"
Number of Positions (Convert From) 5
Number of Positions (Convert To) 5 (2)
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded
Features Coupling Nut
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Current Rating (Amps) 3A
Voltage Rating 125VDC
Temperature Range - Operating -20°C ~ 65°C
Orientation (Convert From) Keyed
Orientation (Convert To) Keyed
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names DCN3-12-ND,DCN312,Z7371
Standard Package 1
Win Source Part Number 1122561-DCN3-12
Ultra Librarian 3D Model Ultra Librarian DCN3-12 CAD Model

Description

Omron Automation and Safety's DCN3-12 connector is a great choice for any electronic project that requires a circular connector adapter.

  • Part Number: 1122561-DCN3-12
  • Category: Connectors, Interconnects
  • Series: DeviceNet™
  • Feature: Coupling Nut
  • Voltage Rating: 125VDC
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Mounting Type: Free Hanging (In-Line)
  • Operating Temperature: -20°C ~ 65°C
