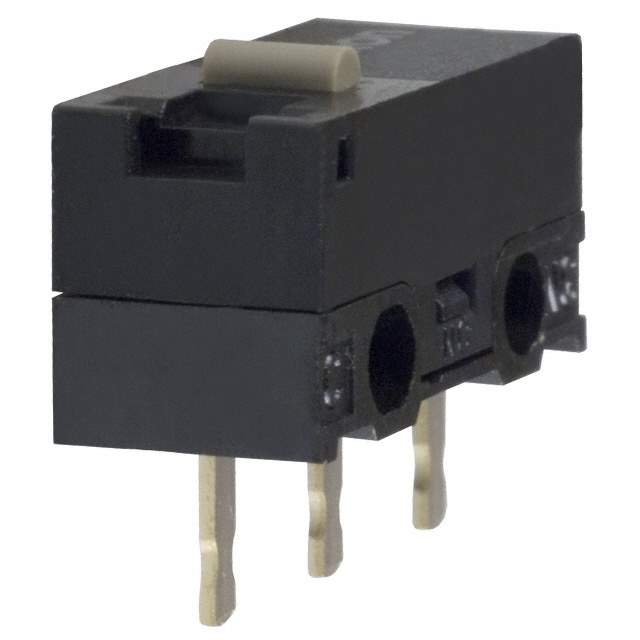

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Omron
Standard Package 1000
Category Switches
Family Snap Action Limit Switches
Series D2F
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating 3A (AC) 2A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Round (Pin Plunger)
Mounting Style Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force Torque 150gf
Release Force 20gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.005" (0.12mm)
Overtravel 0.010" (0.25mm)
Operating Position 0.217" (5.5mm)
Mechanical Life 1000000 Cycles
Electrical Life 30000 Cycles
Operating Temperature Range -25°C ~ 65°C
Catalog D2F Series
Win Source Part Number 083818-D2F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name D2F
Introduction Date April 01, 2002
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian D2F CAD Model

Description

Product Description for D2F

Known for its reliability and efficiency, the D2F component is a crucial element in numerous electronic solutions, providing consistent performance under varied conditions.

  • Applications: Home appliances, security systems, environmental controls.
  • Features: Compact size, rugged design, energy-efficient.
  • Benefits: Space-saving installation, durable performance, reduced operational costs.

The D2F is crafted to support diverse electronic applications, ensuring longevity and optimum operation with minimal maintenance requirements.
