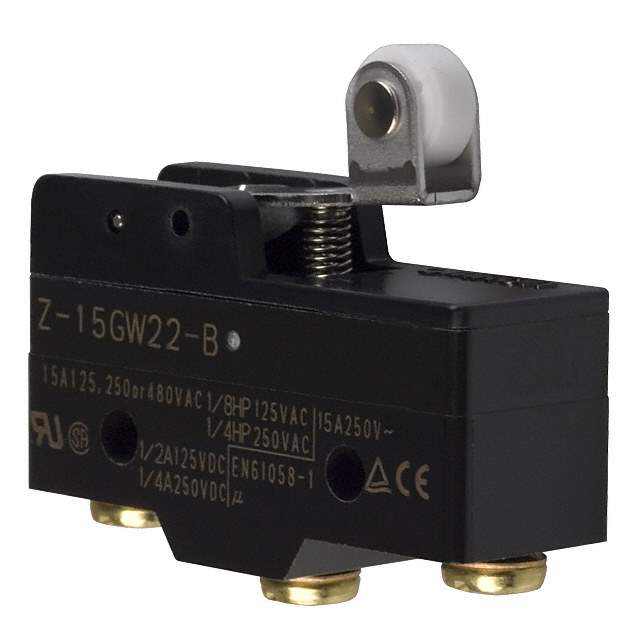

Z-15GW22-B Real Image
Same model may have multiple batches, images only for reference.

Z-15GW22-B

Part No Z-15GW22-B
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Omron Automation and Safety
Packaging Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP00
Operating Force 160gf
Release Force 42gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.094" (2.4mm)
Temperature Range - Operating -25°C ~ 80°C
Operating Position 1.188" (30.2mm)
Electrical Life 500,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number Z-15G
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Part Number Z15GW22-B7-K,Z-15GW22-B7-K,SW197,Z-15GW22-B7-K-ND,Z15GW22B,Z15GW22B7K,Z15GW22-B
Standard Package 1
Win Source Part Number 1323851-Z-15GW22-B
Ultra Librarian 3D Model Ultra Librarian Z-15GW22-B CAD Model

Description

The Z-15GW22-B limit switch from Omron Automation and Safety is a chassis mount switch with SPDT circuitry.

  • Actuator Type: lever, roller
  • Operating Force: 160gf
  • Switch Function: On-Mom
  • Release Force: 42gf
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.094" (2.4mm)
  • Operating Position: 1.188" (30.2mm)
  • Voltage Rating: 125V AC and 30V DC
  • Mechanical Life: 10,000,000 cycles
  • Ingress Protection: IP00
  • RoHS Compliant: true
