Category Switches>Limit Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 600mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Lever, Straight
Mounting Chassis Mount
Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection IP40
Operating Force 70gf
Release Force 6.118gf
Pretravel 0.354" (9.0mm)
Differential Travel 0.110" (2.8mm)
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -25°C ~ 80°C
Operating Position 0.600" (15.2mm)
Electrical Life 100,000 Cycles
Mechanical Life 50,000,000 Cycles
Base Product Number V-153
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Part Number SW1249,V-153-1A5-ND,V1531A5
Standard Package 100
Win Source Part Number 1323807-V-153-1A5
Ultra Librarian 3D Model Ultra Librarian V-153-1A5 CAD Model

Description

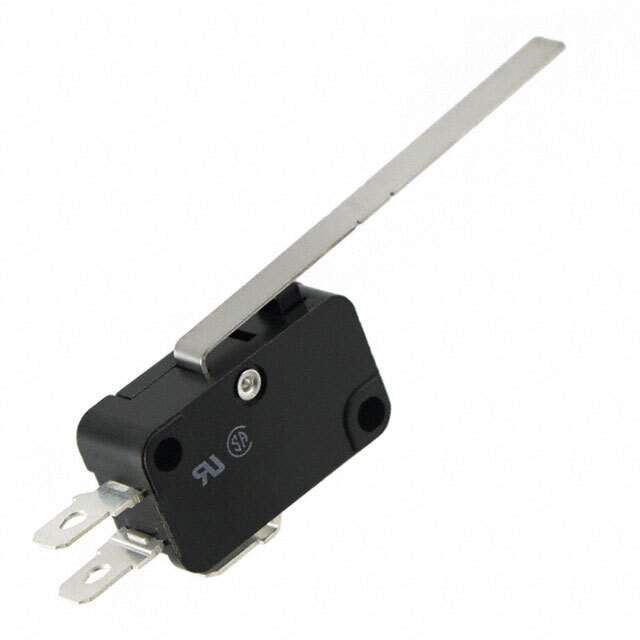

The Omron Electronics Inc-EMC Div V-153-1A5 is a limit switch with a circuit of SPDT.

  • Voltage Rating: 250V AC and 125V DC
  • Current Rating: 15A (AC) and 600mA (DC)
  • Mechanical Life: 50,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Operating Force: 70gf
  • Release Force: 6.118gf
  • Actuator Type: Lever and Straight
  • Pretravel: 0.354" (9.0mm)
  • Differential Travel: 0.110" (2.8mm)
  • Overtravel: 0.079" (2.0mm)
  • Operating Position: 0.600" (15.2mm)
  • Mounting: Chassis Mounted
  • Termination Style: Solder and Quick Connect - 0.187" (4.7mm)
  • Operating Temperature: -25°C to 80°C
  • Ingress Protection: IP40
