Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating 100mA (DC)
Voltage Rating - DC 30V
Actuator Type Lever, Straight
Mounting Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force, Torque 80gf
Release Force 5gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Operating Position 0.268" (6.8mm)
Mechanical Life 1,000,000 Cycles
Electrical Life 30,000 Cycles
Temperature Range - Operating -25°C to 65°C
Win Source Part Number 083779-D2F-01L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian D2F-01L CAD Model

Description

Description of D2F-01L

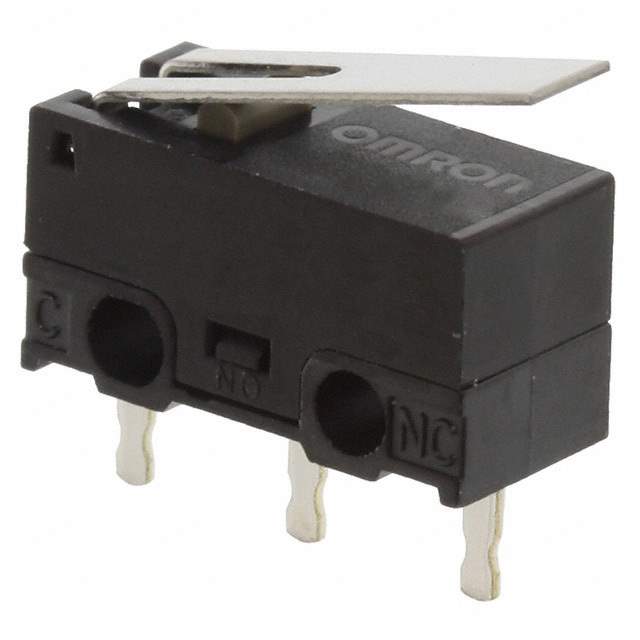

The D2F-01L is a compact and highly reliable microswitch designed for a variety of applications. Known for its precision and long-lasting performance, this switch is ideal for use in devices where limited space and sensitivity are of utmost importance. Its robust design helps in delivering consistent performance across different environments.

Features and Benefits

  • Compact size for space-saving design.
  • High sensitivity and precise operation.
  • Durable design ensuring long operational life.
  • Low operating force for ease of use.

Applications

  • Consumer electronics, such as computer mice and keyboards.
  • Automotive applications for control switches.
  • Industrial equipment requiring precision control.

With its superior build quality and adaptable features, the D2F-01L is a popular choice for developers and engineers looking to implement reliable switching solutions.
