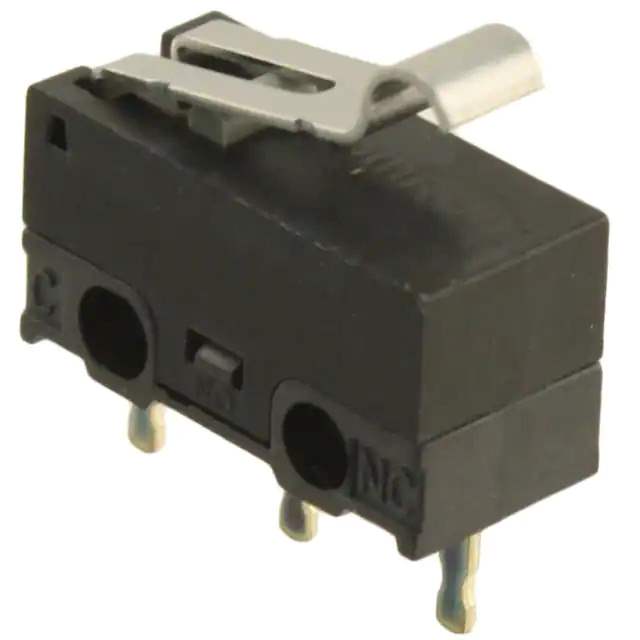

D2F-L3 Real Image
Same model may have multiple batches, images only for reference.

D2F-L3

Part No D2F-L3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 80gf
Release Force 5.099gf
Operating Position 0.335" (8.5mm)
Differential Travel 0.018" (0.45mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 750 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 868009-D2F-L3
Ultra Librarian 3D Model Ultra Librarian D2F-L3 CAD Model

Description

The Omron D2F-L3 is a SPDT limit switch designed for various applications.

  • Termination: PC pin
  • Actuator Type: Lever, simulated roller
  • Electrical Life: 30,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 80gf
  • Release Force: 5.099gf
  • Pretravel: -
  • Differential Travel: 0.018" (0.45mm)
  • Overtravel: 0.020" (0.5mm)
  • Operating Position: 0.335" (8.5mm)
  • Voltage Rating: 125V AC and 30V DC
  • Temperature Range: -40°C to 85°C
  • Series: D2F series
  • Package: Tray package
  • Application: switches - limit switches
