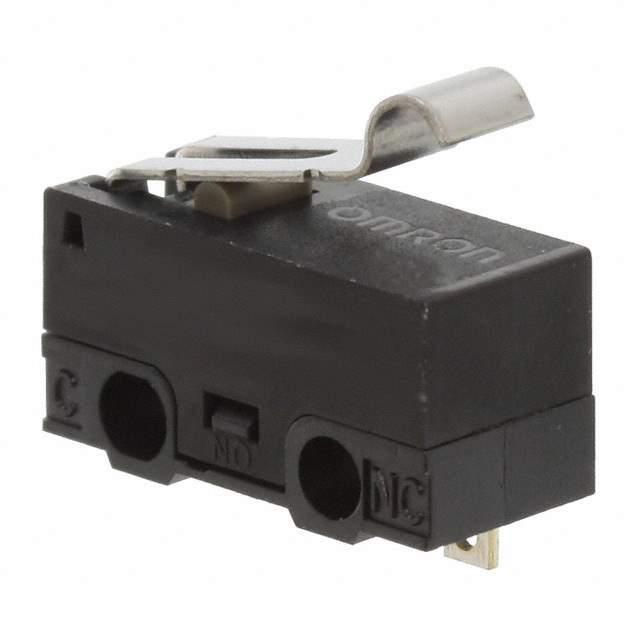

D2F-L3-D Real Image
Same model may have multiple batches, images only for reference.

D2F-L3-D

Part No D2F-L3-D
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V  /  Switch SPDT Chassis Mount
Datasheet
D2F-L3-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2F
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 80gf
Release Force 5.099gf
Differential Travel 0.018" (0.45mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 65°C
Operating Position 0.335" (8.5mm)
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names SW1443,D2F-L3-D-ND,D2FL3D
Standard Package 750
Win Source Part Number 1054741-D2F-L3-D
Ultra Librarian 3D Model Ultra Librarian D2F-L3-D CAD Model

Description

The Omron Electronics Inc-EMC Div D2F-L3-D is a limit switch with a SPDT circuit and an On-Mom switch function.

  • Actuator Type: The switch has a lever and simulated roller actuator type with an operating force of 80gf.
  • Mechanical Life: It has a mechanical life of 1,000,000 cycles and an electrical life of 30,000 cycles.
  • Release Force: The product has a release force of 5.099gf and a differential travel of 0.018" (0.45mm).
  • Temperature Range: It has a temperature range of -25°C ~ 65°C and is chassis mountable.
