The MIC2583-JBQS from Microchip Technology is an advanced, single-channel integrated circuit designed for hot-swap applications and power management solutions. This robust IC enables safe insertion and removal of circuit boards from live backplanes and power buses, minimizing the risk of damage caused by inrush currents and voltage spikes.

Key Features

• Hot Swap Control: The MIC2583-JBQS allows electronic cards to be inserted into and removed from a live backplane without causing the power supply to glitch or the system to reset.
• Programmable Current Limit: Users can set the current limit threshold to match the requirements of their specific application, ensuring optimal protection and performance.
• Fast Response Time: The device reacts quickly to fault conditions, providing rapid protection against overcurrent events.
• Under-Voltage Lockout (UVLO): This feature ensures that the IC remains off until the supply voltage reaches a safe operating level, protecting both the load and the power source.
• Thermal Shutdown: An integrated thermal shutdown mechanism protects the IC from overheating, further enhancing system reliability.

Applications

The MIC2583-JBQS is ideal for a variety of applications that require reliable power management and hot-swap capabilities, including:

• Servers and data centers
• Telecommunication equipment
• Industrial systems
• RAID systems
• Network switches and routers

Technical Specifications

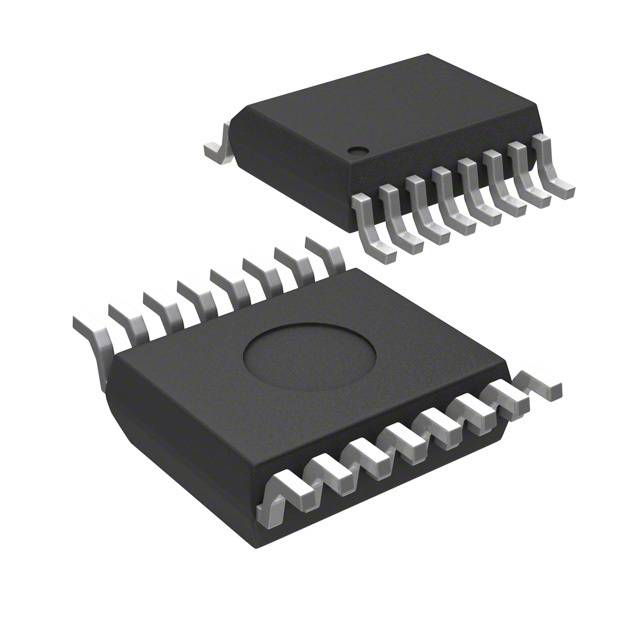

With a wide operating voltage range and the ability to handle significant power levels, the MIC2583-JBQS is a versatile solution for managing power distribution in complex electronic systems. The device is available in a compact, surface-mountable package, making it suitable for space-constrained applications.

Conclusion

The MIC2583-JBQS from Microchip Technology offers a sophisticated solution for hot-swap and power management applications. Its comprehensive set of features ensures safe operation and protection for both the electronic system and the user, making it an essential component for any high-reliability or mission-critical electronic system.
