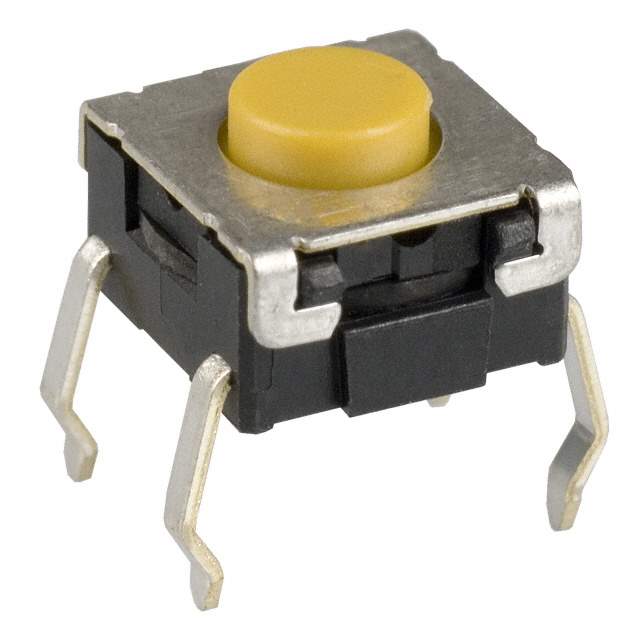

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Tactile Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Through Hole
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.60mm x 6.00mm
Illumination Non-Illuminated
Operating Force 230gf
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number B3W
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number B3W-1002 BY OMZ,B3W1002BYOMZ,B3W1002,B3W-1002BYOMZ,B3WZ0001M,SW418
Standard Package 1,500
Win Source Part Number 1323832-B3W-1002
Ultra Librarian 3D Model Ultra Librarian B3W-1002 CAD Model

Description

The Omron Electronics Inc-EMC Div B3W-1002 is a tactile switch that is designed to be used in various electronic devices.

  • Circuit: SPST-NO
  • Operating Force: 230gf
  • Mechanical Life: 1,000,000 cycles
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Use: Various Electronic Devices that Require a Tactile Switch
