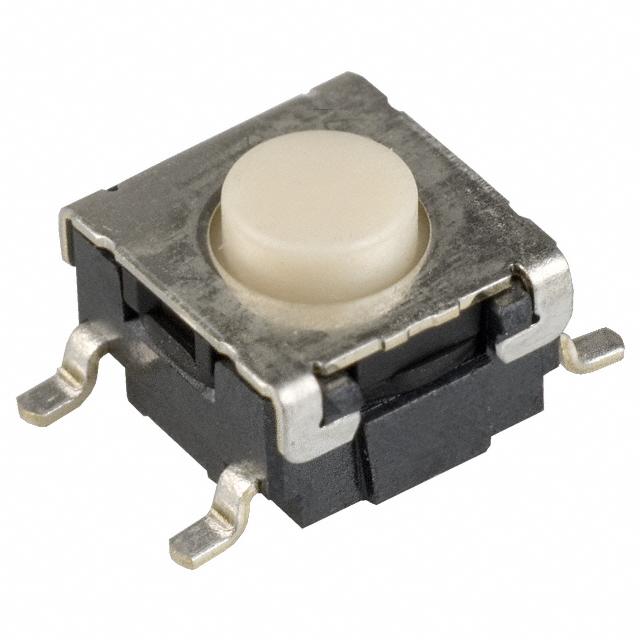

B3S-1100P Omron
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.60mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Grounding Pin, Sealed - Fully
Switch Travel 0.25mm
Mechanical Life 500,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 1021577-B3S-1100P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B3S-1100P CAD Model

Description

The Omron B3S-1100P is a highly reliable sealed switch that features a grounding pin and is dust tight and waterproof with an IP67 ingress protection rating.

  • Switch Type: Sealed
  • Features: Grounding Pin, Dust Tight, Waterproof (IP67)
  • Circuit: SPST-NO
  • Actuator Type: Standard
  • Actuation Orientation: Top Actuated
  • Actuator Travel: 0.25mm
  • Operating Force: 160gf
  • Mechanical Life: 500,000 Cycles
  • Contact Rating: 0.05A @ 24VDC
  • Mounting Type: Surface Mount (SMT)
  • Outline: 6.60mm x 6.00mm
  • Illumination: Non-Illuminated
  • Illumination Voltage/Type: None
  • Temperature Range: -25°C to 70°C
