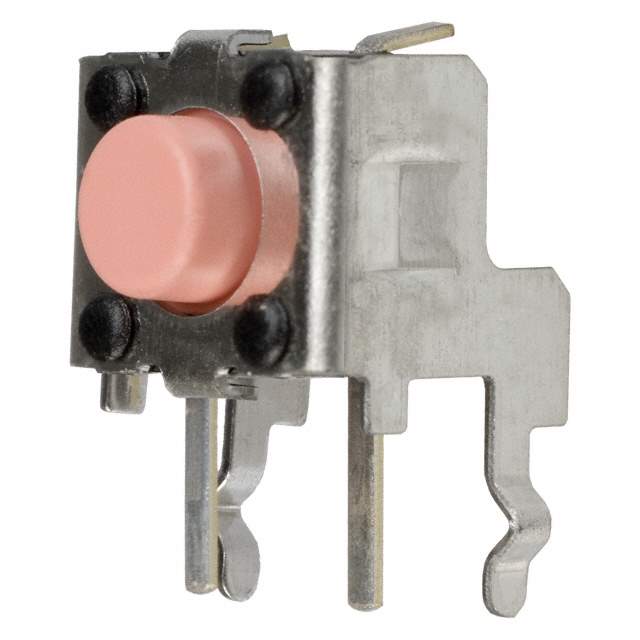

B3F-3125 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Through Hole, Right Angle
Actuator Length, Right Angle 3.85mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.40mm x 7.30mm
Illumination Non-Illuminated
Operating Force 260gf
Features Grounding Pin
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 1021573-B3F-3125
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B3F-3125 CAD Model

Description

The Omron Electronics Inc-EMC Div B3F-3125 is a through-hole mounted, SPST-NO circuit switch component that has an operating force of 260gf and a mechanical life of 100,000 cycles. Omron Electronics Inc-EMC Div is the manufacturer.

  • Mounting Type: Through-hole
  • Circuit: SPST-NO
  • Operating Force: 260gf
  • Mechanical Life: 100,000 cycles
  • Popularity: Medium
  • Supply and Demand Status: balanced
  • Packaging: Bulk
  • Actuator Orientation: Side Actuated
