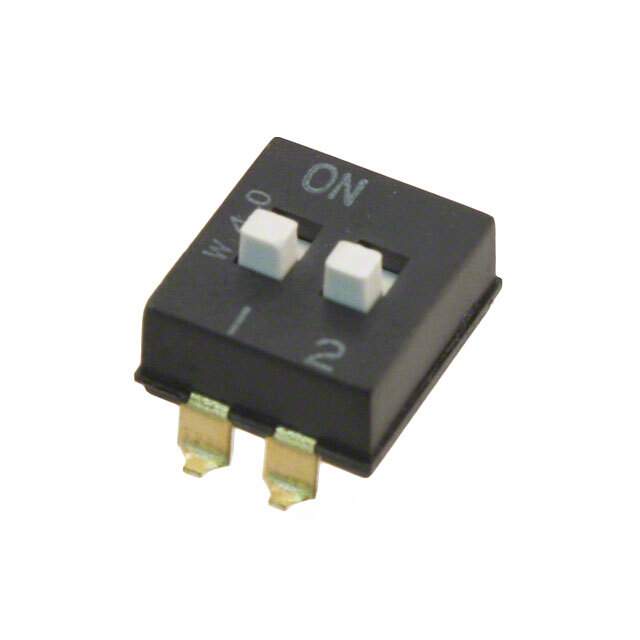

A6SN-2104 Real Image
Same model may have multiple batches, images only for reference.

A6SN-2104

Part No A6SN-2104
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6SN
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Length 0.276" (7.00mm)
Electrical Life 1,000 Cycles
Base Product Number A6SN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names A6SN2104,SW1190
Standard Package 60
Win Source Part Number 1000025-A6SN-2104
Ultra Librarian 3D Model Ultra Librarian A6SN-2104 CAD Model

Description

The Omron A6SN Series is a DIP switch with 2 positions.

  • Positions: 2
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: gull wing
  • Circuit: SPST
  • Package: tube
  • Mounting Style: SMD (SMT)
  • Category: Switches>DIP Switches
  • ECCN: EAR99
  • HTSUS: 8536.50.9065
  • Current Rating: 25mA
  • MSL Level: 1 (unlimited)
  • Other Names: A6SN2104 and SW1190
