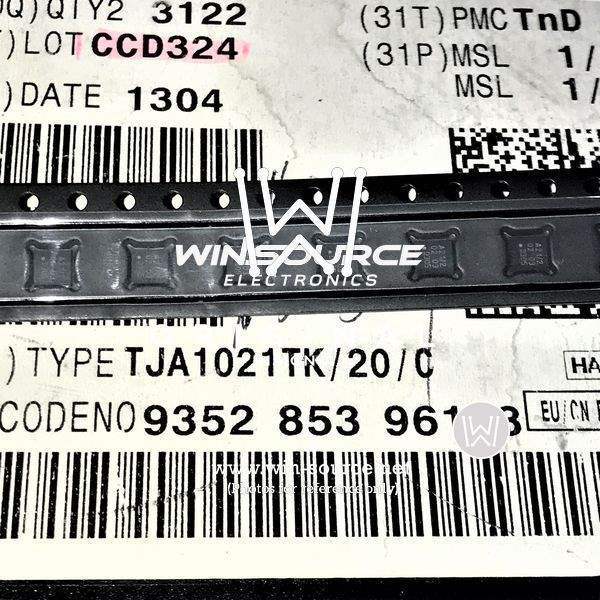

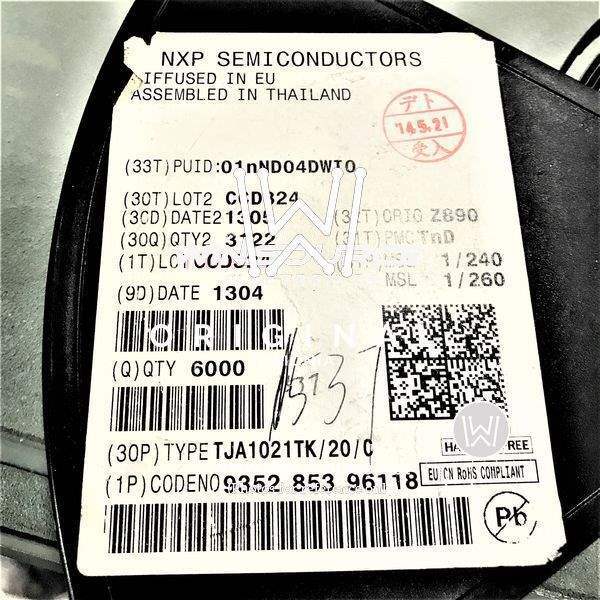

TJA1021TK/20/C,118: LIN Transceiver from NXP Semiconductors

The TJA1021TK/20/C,118 from NXP Semiconductors is a LIN transceiver that interfaces between the LIN commander/responder protocol controller and the physical bus in a Local Interconnect Network (LIN). It is LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, SAE J2602, and ISO 17987-4:2016 (12V) compliant while providing optimum ElectroMagnetic Compatibility (EMC) performance due to the LIN output wave shaping. The transceiver provides transmission speeds from 1kBd to 20kBd (maximum) and is pin-to-pin compatible with the TJA1020 and MC33662(B) series. In sleep and failure modes, power consumption is at a minimum.

The TJA1021TK/20/C,118 is suitable for a wide range of automotive applications, including body control modules, door modules, lighting control systems, and powertrain management systems. It is also used in industrial and commercial applications, such as building automation, factory automation, and process control systems.

Features

• LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, SAE J2602, and ISO 17987-4:2016 (12V) compliant
• Transmission speeds from 1kBd to 20kBd
• Pin-to-pin compatible with the TJA1020 and MC33662(B) series
• Low power consumption in sleep and failure modes
• Wide operating temperature range (-40°C to +125°C)
• Available in a standard HVSON-8 package

Applications

• Body control modules
• Door modules
• Lighting control systems
• Powertrain management systems
• Building automation
• Factory automation
• Process control systems

Benefits

• The TJA1021TK/20/C,118 is a highly reliable and robust LIN transceiver that is suitable for a wide range of automotive and industrial applications.
• It offers excellent EMC performance and low power consumption, making it an ideal choice for cost-sensitive designs.
• The transceiver is also easy to use and implement, thanks to its pin-to-pin compatibility with other popular LIN transceivers.

Overall, the TJA1021TK/20/C,118 is a versatile and high-performance LIN transceiver that is well-suited for a wide range of applications.

Here are some additional details about the TJA1021TK/20/C,118:

• The transceiver has a built-in wake-up detection circuit that allows the LIN bus to wake up the microcontroller from sleep mode.
• It also has a built-in short-circuit protection circuit to prevent damage to the transceiver in case of a short circuit on the LIN bus.
• The transceiver is available in a standard HVSON-8 package, which is a small and lightweight package that is ideal for space-constrained applications.

If you are looking for a reliable and high-performance LIN transceiver for your automotive or industrial application, the TJA1021TK/20/C,118 is a great choice.
