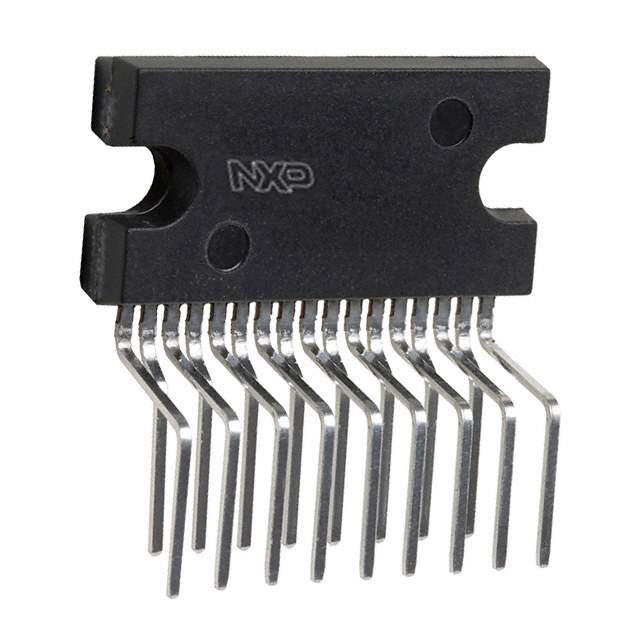

The TDA8947J/N3 from NXP Semiconductors is a versatile and high-performance audio amplifier integrated circuit (IC) designed to deliver quality sound amplification with efficiency and reliability. This audio power amplifier operates in Class AB mode, providing an excellent balance between power efficiency and audio fidelity, making it suitable for various applications ranging from television and monitor audio to small radio systems and portable audio setups.

Key Features

• Power Output: The TDA8947J/N3 offers up to 4 x 7W of output power when driving a 4-ohm load, with a supply voltage of 18V, ensuring robust sound delivery for a range of audio experiences.
• Flexibility: This IC can be configured in various modes, including Single-Ended (SE), Bridge-Tied Load (BTL), and Quad Single-Ended, providing design flexibility to accommodate different audio system requirements.
• Low Distortion: The device is engineered to maintain low levels of Total Harmonic Distortion (THD), which ensures a clear and high-quality audio output, preserving the integrity of the original sound.
• Protection Features: Integrated safety features include short-circuit protection, thermal protection, and a mute function, all of which contribute to the longevity and reliability of the IC under different operating conditions.
• DC Volume Control: The TDA8947J/N3 comes with a DC volume control feature, allowing for smooth and continuous adjustment of the audio volume, which can be easily implemented via external circuitry.

Applications

The NXP TDA8947J/N3 is ideal for a range of applications where space and power efficiency are important. It is commonly used in:

• Television sets
• PC monitors
• Portable and mini audio systems
• Small radio systems

In summary, the TDA8947J/N3 is a highly integrated and efficient solution for audio amplification needs. With its multiple configuration options, low distortion levels, and robust protection features, it stands out as a reliable choice for manufacturers and designers looking to enhance the audio performance of their products.
