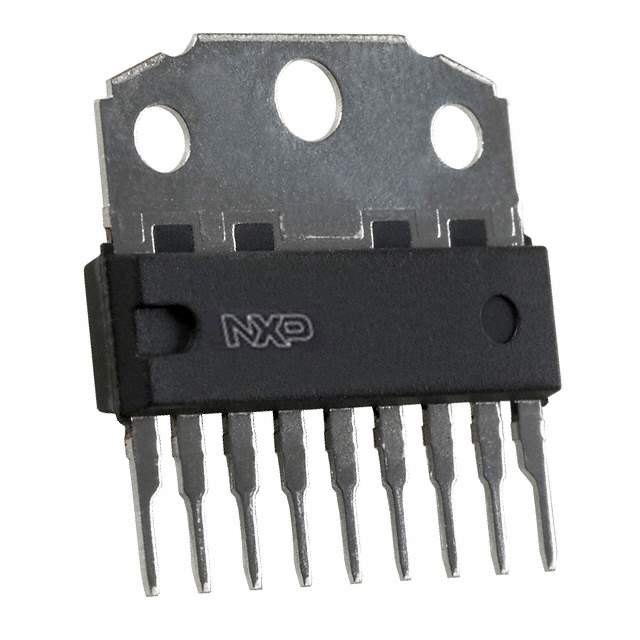

The TDA1013B is a distinctive audio amplifier integrated circuit developed by NXP Semiconductors, a leader in the semiconductor industry. This monolithic integrated circuit is designed to deliver a powerful performance in a compact package, making it an ideal choice for a wide range of audio applications.
Key Features:
- Output Power: The TDA1013B offers an impressive 4 W output power (at a 16-ohm load), which is quite substantial for its size, ensuring clear and robust sound reproduction.
- Operating Voltage: It operates efficiently over a wide supply voltage range from 6 V to 18 V, providing flexibility in various power environments and applications.
- Low Quiescent Current: The device has a very low quiescent current consumption, which enhances its energy efficiency, making it suitable for battery-operated devices.
- Protection Circuits: It is equipped with multiple protection features such as short-circuit protection and thermal shutdown, which safeguard the IC against potential damage from overloads or excessive temperatures.
- Mute Function: The TDA1013B includes a built-in mute function that allows the user to silence the output without needing to alter the volume setting, providing additional control over the audio output.
Applications:
The TDA1013B's versatility makes it suitable for a variety of applications, including:
- Television and monitor audio systems
- Portable radios and CD players
- Small audio amplifiers
- Home theater systems
- Public address systems
Technical Specifications:
Parameter
Value
Output Power
4 W (16 ohm load)
Supply Voltage
6 V to 18 V
Quiescent Current
Low
Protection
Short-circuit, Thermal shutdown
Mute Function
Integrated
With its robust output power, wide operating voltage range, and integrated protection features, the TDA1013B from NXP stands out as a reliable and efficient solution for high-quality audio amplification.
