The SPC5606BF1VLU6R is a cutting-edge microcontroller unit (MCU) produced by NXP Semiconductors, renowned for its powerful features and reliable performance in automotive and industrial applications. This MCU is part of the SPC56 32-bit MCU family, which is designed to meet the rigorous demands of automotive body electronics, instrument clusters, and safety systems.

Key Features

• Core: The SPC5606BF1VLU6R is built around a 32-bit Power Architecture core, which operates at a frequency of up to 64 MHz, delivering the computational power required for complex applications.
• Memory: It comes equipped with 768 KB of flash memory and 80 KB of RAM, providing ample space for program storage and efficient data handling.
• Advanced Timer: The MCU includes a Modular I/O System (MIOS) that supports complex timing and PWM generation necessary for advanced motor control and other time-sensitive tasks.
• Communication Interfaces: A range of communication options such as multiple CAN interfaces, LINFlex, DSPI, and I2C modules are available, ensuring versatile connectivity options for various peripherals and networks.

Enhanced Safety and Reliability

The SPC5606BF1VLU6R is designed with a focus on safety, incorporating features such as a Memory Protection Unit (MPU), Error Correction Code (ECC) on both flash and RAM, and a watchdog timer to ensure system integrity and reliability. These features make it an ideal choice for safety-critical automotive applications.

Low Power Consumption

Energy efficiency is a key consideration in the design of the SPC5606BF1VLU6R, which offers various power-saving modes. These modes allow the MCU to reduce its power consumption significantly when full processing power is not required, making it suitable for battery-powered or energy-sensitive applications.

Package and Temperature Range

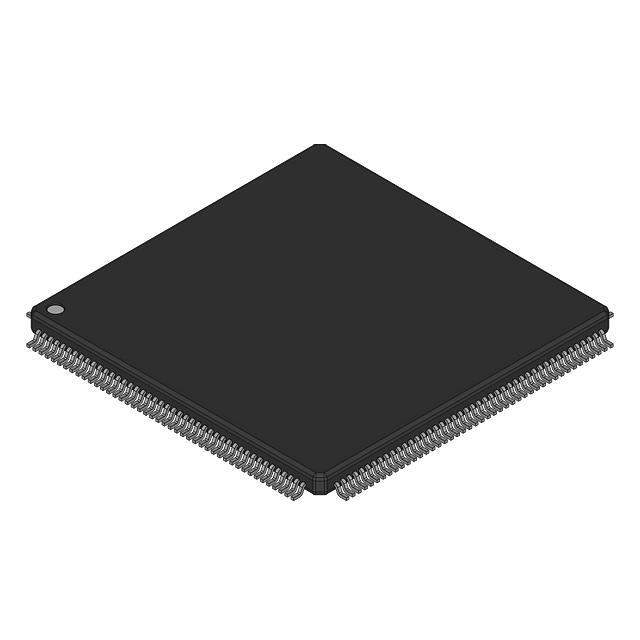

The device is offered in a 100-pin LQFP package, which is optimized for space-constrained applications. It is designed to operate within an extended temperature range, making it robust enough for use in harsh environmental conditions.

Applications

With its robust feature set, the SPC5606BF1VLU6R is ideal for a wide range of applications, including automotive body control modules, gateways, safety systems, and industrial control systems, where reliability, performance, and low power consumption are critical.
