NXP S912XD128F2MAA Microcontroller

The NXP S912XD128F2MAA is a high-performance microcontroller designed to cater to the demanding needs of automotive and industrial applications. This microcontroller is part of the S12XD family, known for its enhanced system performance, memory options, and robust feature set.

Key Features:

• Advanced MCU Architecture: The S912XD128F2MAA is built on the HCS12X core, which operates at a frequency of up to 80 MHz. This 16-bit microcontroller integrates a bus frequency of up to 40 MHz, providing a balanced approach between processing power and energy efficiency.
• Memory Capacity: With 128 KB of flash memory and 2 KB of EEPROM, this microcontroller offers ample space for complex application code and data storage. The 8 KB of RAM further supports efficient runtime operations.
• Rich Peripheral Set: This device includes a variety of peripherals such as multiple 16-bit timers, an 8-channel 10-bit Analog-to-Digital Converter (ADC), 2 Serial Communication Interfaces (SCI), and a Serial Peripheral Interface (SPI). These features enable versatile connectivity and control options for a wide range of applications.
• Durability: Designed to withstand harsh conditions, the S912XD128F2MAA operates within a temperature range of -40°C to 125°C, making it suitable for automotive under-hood applications.
• Enhanced Safety Features: Safety is a critical aspect of automotive design, and this microcontroller includes features such as a Memory Protection Unit (MPU), a watchdog timer, and low-voltage detection to ensure reliable operation.

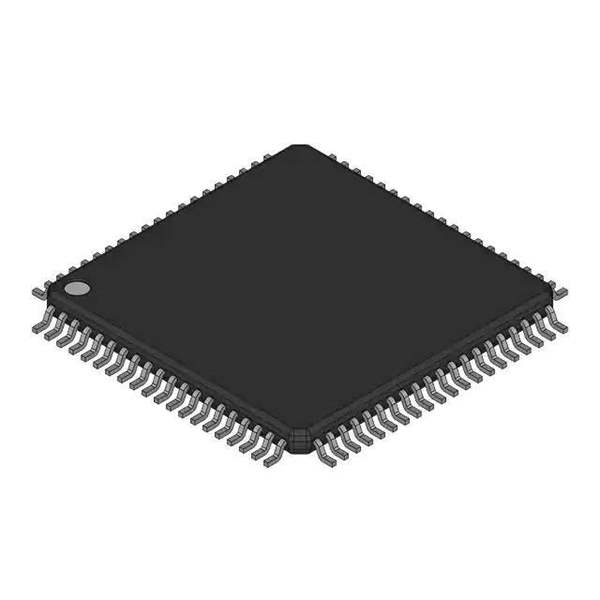

• Package and Footprint: The microcontroller is offered in an 80-pin QFP package, which is ideal for space-constrained applications while still providing sufficient I/O ports for complex tasks.

Applications:

The S912XD128F2MAA is versatile enough to be used in a variety of applications, including but not limited to:

• Automotive engine control units
• Body control modules
• Industrial control systems
• Robotics
• Embedded systems requiring robust control capabilities

In summary, the NXP S912XD128F2MAA microcontroller is an excellent choice for designers who need a blend of performance, memory capacity, and reliability in their automotive or industrial control applications.
