Product Overview

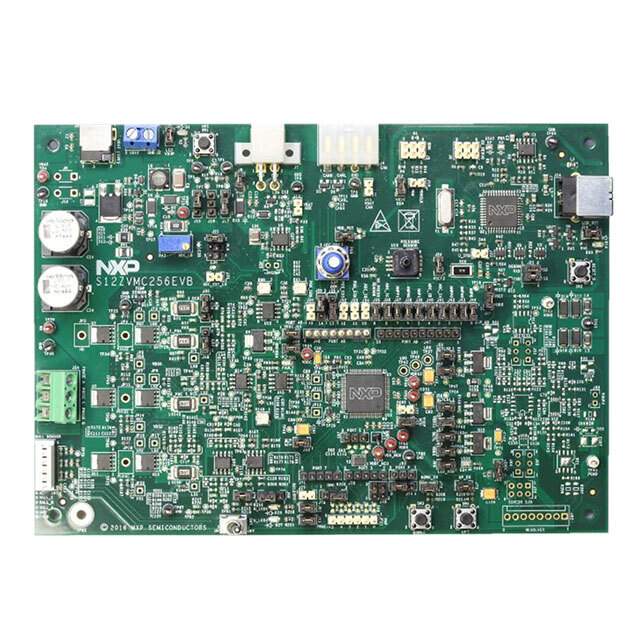

The S12ZVMC256EVB is a versatile and powerful evaluation board from NXP Semiconductors designed for automotive and industrial motor control applications. This board is built around the S12 MagniV S12ZVM mixed-signal microcontroller, which integrates a 16-bit S12Z CPU core, a 5V voltage regulator, a LIN physical layer, and a motor control unit, making it an ideal solution for efficiently driving BLDC, PMSM, and other types of motors.

Key Features

• Integrated S12ZVM Microcontroller: At the heart of the evaluation board is the S12ZVM microcontroller, which combines high-performance digital and analog circuits on a single chip, reducing system complexity and cost.
• On-Board Debugging: The S12ZVMC256EVB comes equipped with an integrated BDM (Background Debug Module) interface, providing an easy-to-use debugging experience without the need for additional hardware.
• Motor Control Flexibility: With its advanced motor control peripherals, the board can handle a variety of motor types, offering flexibility in application development.
• Comprehensive Development Support: NXP provides a full suite of software and hardware development tools, including CodeWarrior IDE and Processor Expert software, which help to streamline the development process.
• Connectivity: The board includes LIN and CAN communication interfaces, making it suitable for automotive network applications and allowing for easy integration into existing systems.
• Robust Power Stage: The S12ZVMC256EVB features a robust power stage that can drive motors with various power ratings, ensuring reliable operation across different use cases.

Applications

The S12ZVMC256EVB is designed to address the needs of a wide range of motor control applications, particularly in the automotive sector, such as:

• Electric Power Steering (EPS)
• Fuel Pumps
• Engine Cooling Fans
• Window Lifters

In addition to automotive uses, the board's capabilities also extend to industrial applications where robust and reliable motor control is essential.

Getting Started

New users can quickly begin development with the S12ZVMC256EVB thanks to the comprehensive documentation, example code, and tutorials provided by NXP. The board is designed for ease of use, allowing developers to focus on their application-specific challenges rather than hardware intricacies.
