Products specifications

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6V
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 1pF @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-143B
Win Source Part Number 095087-PRTR5V0U2X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Multimedia, Consumer Electronics, Communications & Networking, Computers & Computer Peripherals
Family Name PRTR5V0U2X
Introduction Date September 22, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PRTR5V0U2X CAD Model

Description

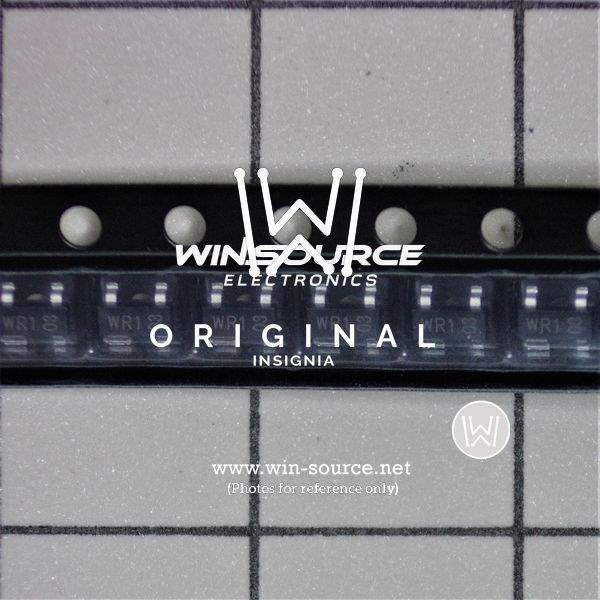

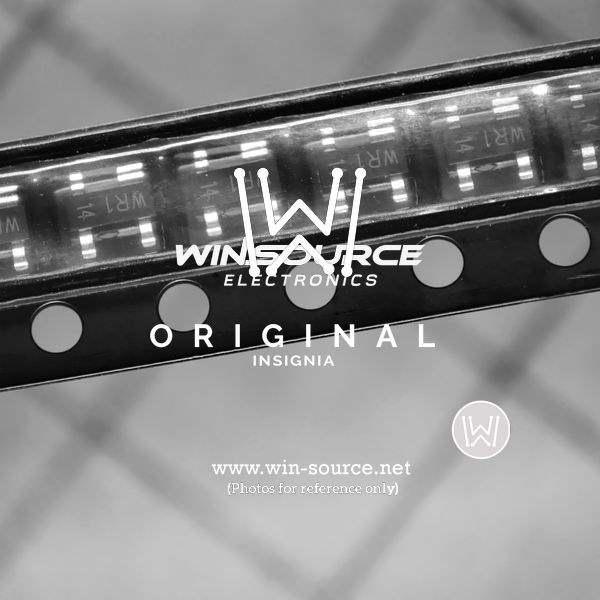

NXP's PRTR5V0U2X Ultra Low Capacitance Double ESD Protection Diode

The PRTR5V0U2X from NXP Semiconductors is a state-of-the-art ESD protection device designed to shield sensitive electronic components from electrostatic discharge (ESD) damage. This ultra-low capacitance double ESD protection diode is an essential component for modern high-speed data and signal lines where maintaining signal integrity is crucial.

Constructed to deliver robust protection for two I/O lines, the PRTR5V0U2X is capable of dissipating ESD strikes of up to ±20 kV, thereby safeguarding your electronics against the rigorous ESD stress encountered during handling and operation. This level of protection complies with the IEC 61000-4-2 international standard, ensuring that your products can withstand common electrostatic occurrences.

One of the standout features of the PRTR5V0U2X is its ultra-low line capacitance, typically just 1.8 pF. This characteristic is vital for maintaining signal fidelity, especially in applications that involve high-speed data transfer, such as USB 2.0, HDMI, and Gigabit Ethernet. By minimizing signal distortion, this diode ensures that your data lines perform at their peak while still being shielded from ESD events.

The PRTR5V0U2X is available in a small SOT143B surface-mounted package, which is not only space-efficient but also allows for a simplified PCB design and layout. This compact form factor makes it an excellent choice for a wide range of applications, including mobile phones, digital cameras, and other portable devices where space is at a premium.

With its low dynamic resistance and clamping voltage, the PRTR5V0U2X provides a high level of protection for sensitive circuits without compromising the performance of the protected signal line. It's also designed to support a broad operating temperature range, ensuring reliable operation across various environments.

In summary, the NXP PRTR5V0U2X is a highly efficient solution for ESD protection in applications that demand minimal signal distortion and high-speed data integrity. Its robust protection capabilities, combined with a low-profile package, make it an ideal choice for designers looking to enhance the durability of their electronic products without sacrificing performance.
