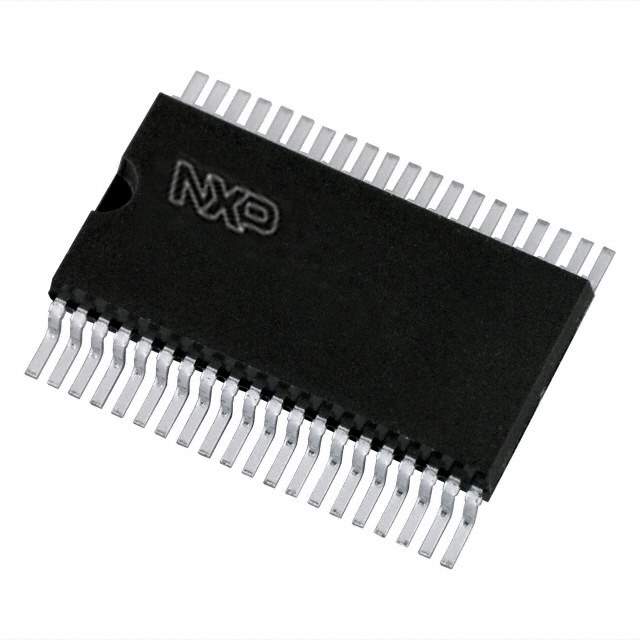

NXP PCF8566TS Universal LCD Driver

The NXP PCF8566TS is a versatile and powerful LCD driver designed to meet the needs of a wide range of applications requiring the display of alphanumeric or graphical information. This sophisticated integrated circuit is engineered to drive liquid crystal displays with low multiplex rates, making it an ideal choice for small to medium-sized LCD panels.

Key Features

• High Drive Capability: The PCF8566TS can drive LCDs up to 24 segments and 4 commons, allowing for a wide variety of display configurations.
• Flexible Interface: It features an I²C-bus interface, which ensures easy integration with most microcontrollers, reducing the complexity of the system design and saving valuable board space.
• Low Power Consumption: Designed with power efficiency in mind, the PCF8566TS operates with a low power supply voltage ranging from 2.5V to 6V, making it suitable for battery-operated devices.
• Multiplex Rates: The device supports multiple multiplex rates, including static, 1/2, 1/3, and 1/4 duty factors, providing designers with the flexibility to choose the optimal display performance for their application.
• Software Control: All device functions, such as display configuration, are programmable through the I²C-bus interface, offering excellent control over the display parameters.
• Display Memory: On-chip display RAM enables the PCF8566TS to store the display data, which is beneficial for reducing the workload on the main processor and for power saving.

Applications

The PCF8566TS is suitable for a wide array of applications, including but not limited to:

• Portable instruments
• Medical devices
• Industrial control panels
• Car radios
• Home appliances

With its robust set of features and ease of use, the NXP PCF8566TS LCD driver is an excellent choice for designers looking to enhance the user interface of their products with a reliable and high-quality display solution.
