Products specifications

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Active
Type Linear
Internal Switch(s) Yes
Number of Outputs 16
Operating Input Voltage(Min) 2.3V
Maximum Supply Voltage 5.5V
Output Voltage 5.5V
Channel Output Current 25mA
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 28-TSSOP
Win Source Part Number 269925-PCA9685PW
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in LED Lighting, Consumer Electronics, Portable Devices, Power Management
Family Name PCA9685PW
Introduction Date July 24, 2008
ECCN EAR99
Country of Origin China, Philippines, Thailand
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PCA9685PW CAD Model

Description

NXP PCA9685PW 16-channel, 12-bit PWM Fm+ I²C-bus LED Controller

The NXP PCA9685PW is a sophisticated LED controller device designed to handle complex lighting and motor control tasks in various applications. It is a 16-channel, 12-bit pulse width modulation (PWM) controller, equipped with an I²C-bus interface that operates at a frequency of up to 1MHz (Fm+). This high-speed capability makes the PCA9685PW suitable for driving servos, LEDs, and other devices requiring precise PWM signal control.

Each of the 16 output channels can be set to an individual PWM signal, allowing for intricate patterns and intensity control. This feature is especially beneficial in LED color mixing and brightness control applications, where nuanced adjustments are necessary. The 12-bit resolution provides 4096 steps of PWM control, which translates to smooth transitions and fine-grained control over connected devices.

The PCA9685PW operates on a supply voltage from 2.3V to 5.5V, making it versatile for use in both low and standard voltage systems. It also includes an external oscillator and a built-in clock generator which can be programmed to save power when the device is not in use. The internal oscillator ensures stable operation without the need for additional external components, simplifying the design and reducing the overall bill of materials.

One of the key features of the PCA9685PW is its ability to be programmed to generate a 'call' interrupt, which can be used to wake up the microcontroller handling the device or to trigger a reaction in another part of the system. This interrupt feature enhances its application in power-sensitive designs where power conservation is critical.

Furthermore, the device supports up to 62 devices on the same I²C-bus, thanks to its hardware address pins. This scalability is essential for projects that require multiple PWM channels, such as large LED installations or complex robotic systems.

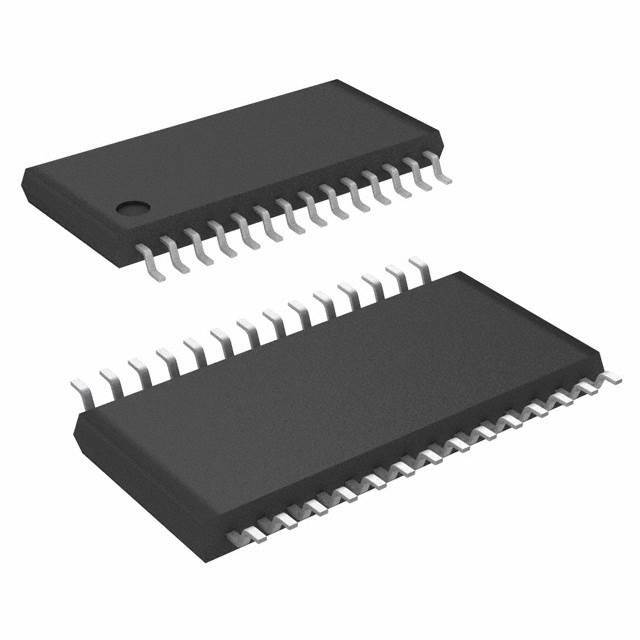

The PCA9685PW is available in a TSSOP28 package, ensuring a compact footprint on the PCB. Its robust design and wide range of features make it an ideal choice for engineers and hobbyists looking to control multiple PWM outputs with precision and ease.
