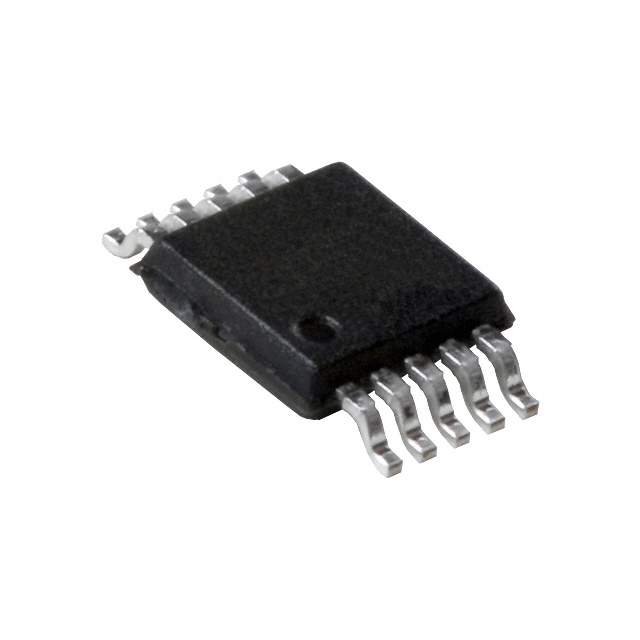

Product Overview: NXP PCA9537DPZ

The NXP PCA9537DPZ is a highly versatile, low-voltage 4-bit I²C-bus and SMBus low-power I/O expander. This integrated circuit offers a convenient solution for expanding input/output capabilities of I²C-bus/SMBus compatible controllers. Designed to operate with a power supply voltage ranging from 2.3V to 5.5V, the PCA9537DPZ is suitable for a wide array of applications, particularly in systems that require low power consumption and a high level of integration.

Key Features:

• I²C Interface: The device features a bi-directional I²C-bus and SMBus interface which is capable of operating at speeds up to 400 kHz, making it compatible with most microcontrollers and processors.
• Configurable I/O Pins: All four I/O pins can be independently configured as either inputs or outputs, providing flexibility for various application requirements.
• Interrupt Output: An interrupt output is provided, which can be triggered by input state changes, eliminating the need for constant polling by the host controller and thus reducing overall power consumption.
• Low Standby Current: The PCA9537DPZ is optimized for low standby current, which is particularly beneficial for battery-powered and power-sensitive applications.
• Wide Operating Voltage Range: With an operating voltage range of 2.3V to 5.5V, the device supports both 3.3V and 5V logic levels, allowing for easy integration in mixed-voltage systems.
• Polarity Inversion: The I/O polarity can be inverted, which provides additional flexibility in interfacing with external components.
• Small Footprint: Housed in a small TSSOP8 package, the PCA9537DPZ occupies minimal board space, making it ideal for space-constrained applications.

Applications:

The PCA9537DPZ is well-suited for a variety of applications, including:

• Servers
• Personal electronics
• Industrial control systems
• Medical equipment
• Automotive systems

With its combination of flexibility, low power consumption, and ease of use, the NXP PCA9537DPZ I/O expander is an excellent choice for designers looking to enhance the I/O capabilities of their systems without incurring significant power or space penalties.
