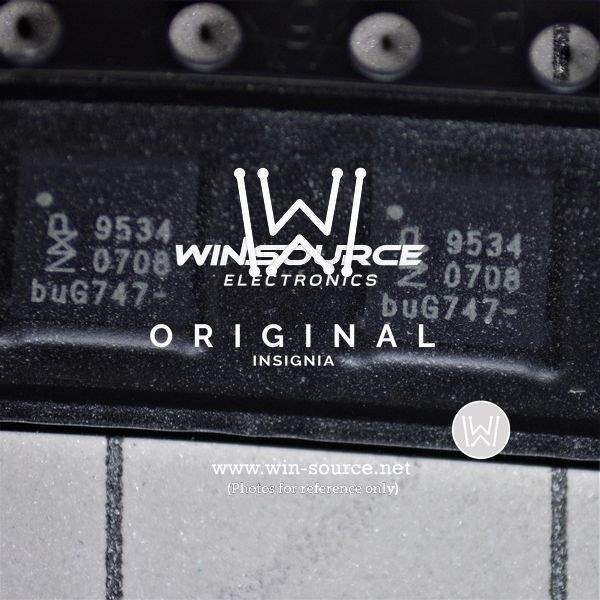

NXP PCA9534BS,118 I/O Expander

The NXP PCA9534BS,118 is a highly integrated and feature-rich I/O expander that adds 8 additional I/Os to any microcontroller or processor with an I2C interface. This versatile device is designed to help system designers overcome the limitation of the number of I/O pins available on controllers and processors, particularly in space-constrained applications.

The PCA9534BS,118 operates on a supply voltage range of 2.3V to 5.5V, making it suitable for a variety of logic levels and ensuring compatibility with both 3.3V and 5V systems. This level of flexibility is essential for modern mixed-voltage systems and helps facilitate easy integration into various design environments.

One of the key features of this I/O expander is its built-in interrupt functionality, which can be configured to alert the host controller when input state changes, thereby reducing the need for constant polling and enabling more efficient use of the host processor's resources. This feature is particularly useful in applications where immediate response to input changes is critical.

The PCA9534BS,118 supports the standard I2C-bus Fast-mode Plus with speeds up to 1 MHz, which is a significant advantage for applications requiring fast data transfer. Additionally, the device comes in a small, surface-mount HVQFN20 package, which is ideal for applications with limited PCB space such as portable devices, consumer electronics, and industrial control systems.

Each I/O of the PCA9534BS,118 can be independently configured as either an input or an output, providing designers with the flexibility to address a wide range of application requirements. The device also features power-up with all I/Os configured as inputs, which minimizes the risk of unintended outputs during power-up sequences.

Moreover, the PCA9534BS,118 includes built-in power-on reset, which ensures that the device starts in a known state, and an active LOW interrupt output that can be connected to the interrupt logic of the host microcontroller. With its robust feature set and ease of integration, the NXP PCA9534BS,118 is an excellent choice for expanding I/O capabilities in a multitude of electronic applications.
