Overview of MPXV2202DPT1 Pressure Sensor

The MPXV2202DPT1 is a state-of-the-art pressure sensor from NXP Semiconductors, designed to provide precise and reliable pressure measurement in a variety of applications. This piezoresistive transducer is a member of NXP's MPX series of pressure sensors and is particularly suitable for those applications where compactness, accuracy, and dependability are paramount.

Key Features

• Pressure Range: The MPXV2202DPT1 is engineered to measure differential pressure within the range of 0 to 200 kPa (kilopascals), making it versatile for a wide array of uses.
• High Sensitivity: The sensor exhibits a high sensitivity of 1.0 mV/kPa, ensuring that even the slightest changes in pressure are detected and measured accurately.
• Temperature Compensated: With a built-in temperature compensation range from -40°C to +125°C, the MPXV2202DPT1 maintains accuracy across a broad range of operating conditions.
• Calibrated: Each unit is calibrated and tested, guaranteeing consistent performance right out of the box.
• Supply Voltage: It operates at a nominal supply voltage of 10V, but it is also efficient over a range of 7V to 16V, allowing for flexibility in various circuit designs.

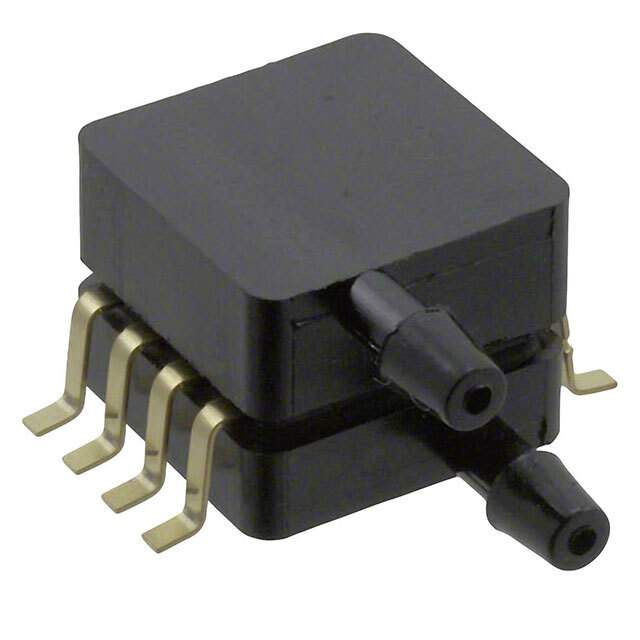

• Package: The sensor comes in a small-outline package (SOP) with dual port configuration, which is ideal for PCB mounting and offers a practical solution for space-constrained applications.

Applications

The MPXV2202DPT1 is well-suited for a host of applications that require precise pressure monitoring. Typical applications include:

• Medical devices such as blood pressure monitors and respiratory machines
• Industrial controls, including pneumatic systems and fluid dynamics studies
• Automotive systems, for example, tire pressure monitoring and engine management systems
• Aerospace and avionics, including cabin pressure control and altimeters

Quality and Reliability

As with all NXP products, the MPXV2202DPT1 is designed with an emphasis on quality and reliability. It is built to meet the stringent requirements of industrial and automotive-grade standards, ensuring dependable performance in the most demanding environments.

In summary, the MPXV2202DPT1 from NXP is a compact, accurate, and robust pressure sensor, perfect for a wide range of applications where reliable pressure measurement is critical.
